AVENTICS AT4 Series Trunnion Mounting, 25 mm Swivel Diam, 100/125 mm Piston Diam, Steel Housing, Sintered Bronze Bushing

Manufacturer: Asco LP

Mfg Product Code: 1827001606

Weight: 0.6 lb(s)

Dir Poppet Valve, Lever, G 1/4 Internal Thread, Alum, 3/2 Dir

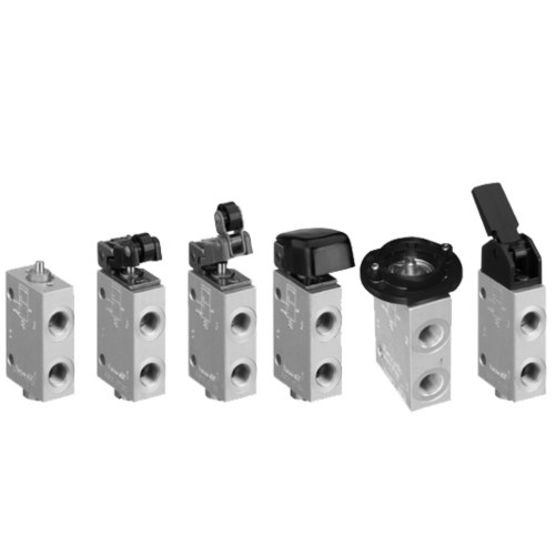

The AVENTICS Series AP offers a wide range of poppet valves with aluminium housing. With many actuation control versions available (roller, lever, pedal, push-button or plunger) the AP Series is the universal solution for automation systems and panel installation.

Features

• Activation: Mechanical
• Nominal flow Qn: 550 l/min
• Switching principle: 3/2
• Compressed air connection output: G 1/4
• Working pressure min.: 0 bar
• Working pressure max: 10 bar
• Actuating element: Lever
• Type: Poppet valve
• Plate connection: Pipe connection
• Min. ambient temperature: -30 °C
• Max. ambient temperature: 80 °C
• Min. medium temperature: -30 °C
• Max. medium temperature: 80 °C
• Medium: Compressed air
• Oil content of compressed air min.: 0 mg/m³
• Oil content of compressed air max.: 5 mg/m³
• Max. particle size: 5 µm
• Compressed air connection type: Internal thread
• Compressed air connection input: G 1/4
• Compressed air connection, exhaust: G 1/4
• Weight: 0.27 kg
• Housing material: Aluminum
• Seal material: Acrylonitrile butadiene rubber
• Material actuating control: Polyamide, Steel:
