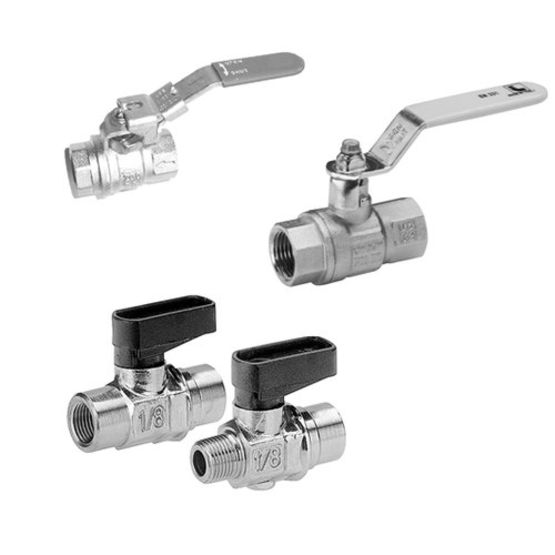

Representative photo. Please check item description for details.
AVENTICS SC01 Series Stop Valve, G 1/4 Internal Thread, Brass, Polyamide Handle
Manufacturer: Asco LP
Mfg Product Code: 1823391911
Weight: 0.12 lb(s)
On Hand: 0
Stop Valve, G 1/4 Internal Thread, Brass, Polyamide Handle
AVENTICS Series SC01 Stop valves are available even in 2/2 or 3/2 construction. SC01 stop valves control flow direction and support a diverse range of system requirements. Our ball valves are both reliable and robust when it comes to service and are available in various configurations and options.
Features
- Type: Ball Valve
- Medium: Compressed air
- Compressed air connection 1: G 1/4
- Compressed air connection type 1: Internal thread
- Compressed air connection 2: G 1/4
- Compressed air connection type 2: Internal thread
- Min. ambient temperature: -18 °C
- Max. ambient temperature: 80 °C
- Min. medium temperature: -18 °C
- Max. medium temperature: 80 °C
- Working pressure min.: 0 bar
- Working pressure max: 16 bar
- Delivery unit: 2 piece
- Weight: 0.05 kg
- Housing material: Brass
- Seal material: Polytetrafluorethylene
- Material hand lever: Polyamide:
