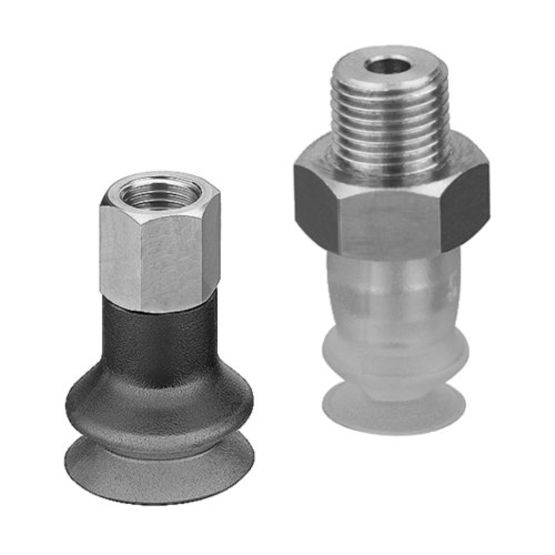

AVENTICS BSG Series, 15.6 mm Bellow Suction Gripper, G 1/8, NBR, External Thread

Manufacturer: Asco LP

Mfg Product Code: 1820415035

Weight: 0.02 lb(s)

15.6 mm Bellow Suction Gripper, G 1/8, NBR, External Thread

AVENTICS Series BSG bellow suction grippers are suitable for workpieces with curved or inclined surfaces, as well as to compensate for height tolerances or to handle large-surface, non-rigid components such as large, thin sheets.

Features

• Min. ambient temperature: -10 °C
• Max. ambient temperature: 70 °C
• Temporary ambient temperature (<30 s) min.: -30 °C
• Temporary ambient temperature (<30 s) max.: 120 °C
• Compressed air connection: G 1/8
• external diameter: 15.6 mm
• Holding force: 2.3 N
• Separation force: 6.7 N
• Volume: 0.75 cm³
• Max. curving on object Rmin: 20 mm
• Abrasion value according to DIN 535 16: 100-120 mm³
• Hardness according to standard: 55 ± 5 Shore A
• Connection thread type: External thread
• Material connector: Aluminum
• Suction unit material: Acrylonitrile butadiene rubber
• Delivery unit: 2 piece
• Weight: 0.006 kg:
