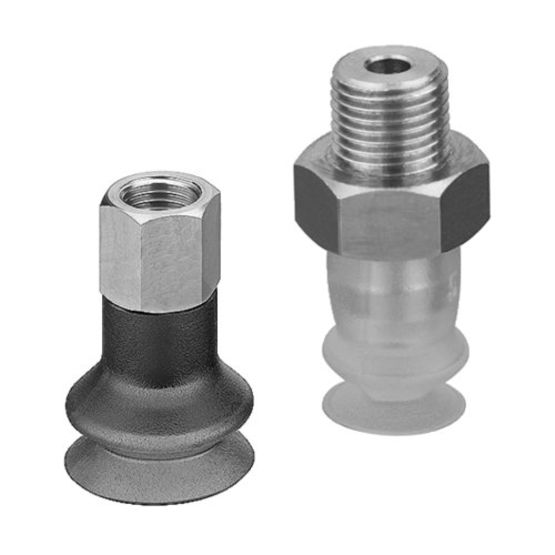

Representative photo. Please check item description for details.
AVENTICS BSG Series, 10.4 mm Bellow Suction Gripper, G 1/8, Fluoromethyl Silicone, External Thread
Manufacturer: Asco LP
Mfg Product Code: 1820415029
Weight: 0.02 lb(s)
On Hand: 0
10.4 mm Bellow Suction Gripper, G 1/8, Fluoromethyl Silicone, External Thread
AVENTICS Series BSG bellow suction grippers are suitable for workpieces with curved or inclined surfaces, as well as to compensate for height tolerances or to handle large-surface, non-rigid components such as large, thin sheets.
Features
- Min. ambient temperature: -30 °C
- Max. ambient temperature: 180 °C
- Temperature resistance: Heat resistant
- Temporary ambient temperature (<30 s) min.: -50 °C
- Temporary ambient temperature (<30 s) max.: 220 °C
- Compressed air connection: G 1/8
- external diameter: 10.4 mm
- Holding force: 0.95 N
- Separation force: 3.8 N
- Volume: 0.23 cm³
- Max. curving on object Rmin: 10 mm
- Abrasion value according to DIN 535 16: 180-200 mm³
- Hardness according to standard: 55 ± 5 Shore A
- Connection thread type: External thread
- Material connector: Aluminum
- Suction unit material: Fluoromethyl silicone
- Delivery unit: 2 piece
- Weight: 0.005 kg:
