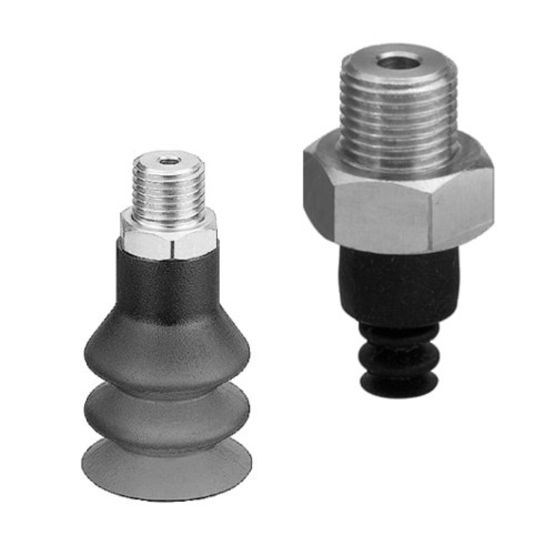

AVENTICS BSA Series, 29 mm Bellow Suction Gripper, G 1/4, Polyurethane, External Thread

Manufacturer: Asco LP

Mfg Product Code: 1820415010

Weight: 0.04 lb(s)

29 mm Bellow Suction Gripper, G 1/4, Polyurethane, External Thread

AVENTICS Series BSA bellow suction grippers are suitable for workpieces with curved or inclined surfaces, as well as to compensate for height tolerances or to handle large-surface, non-rigid components such as large, thin sheets.

Features

• Min. ambient temperature: -40 °C
• Max. ambient temperature: 80 °C
• Temporary ambient temperature (<30 s) min.: -40 °C
• Temporary ambient temperature (<30 s) max.: 100 °C
• Compressed air connection: G 1/4
• external diameter: 29 mm
• Holding force: 13.5 N
• Separation force: 32 N
• Volume: 9 cm³
• Max. curving on object Rmin: 25 mm
• Abrasion value according to DIN 535 16: 10-12 mm³
• Hardness according to standard: 72 ± 5 Shore A
• Connection thread type: External thread
• low-wear: low-wear
• Material connector: Aluminum
• Suction unit material: Polyurethane
• Delivery unit: 1 piece
• Weight: 0.017 kg:
