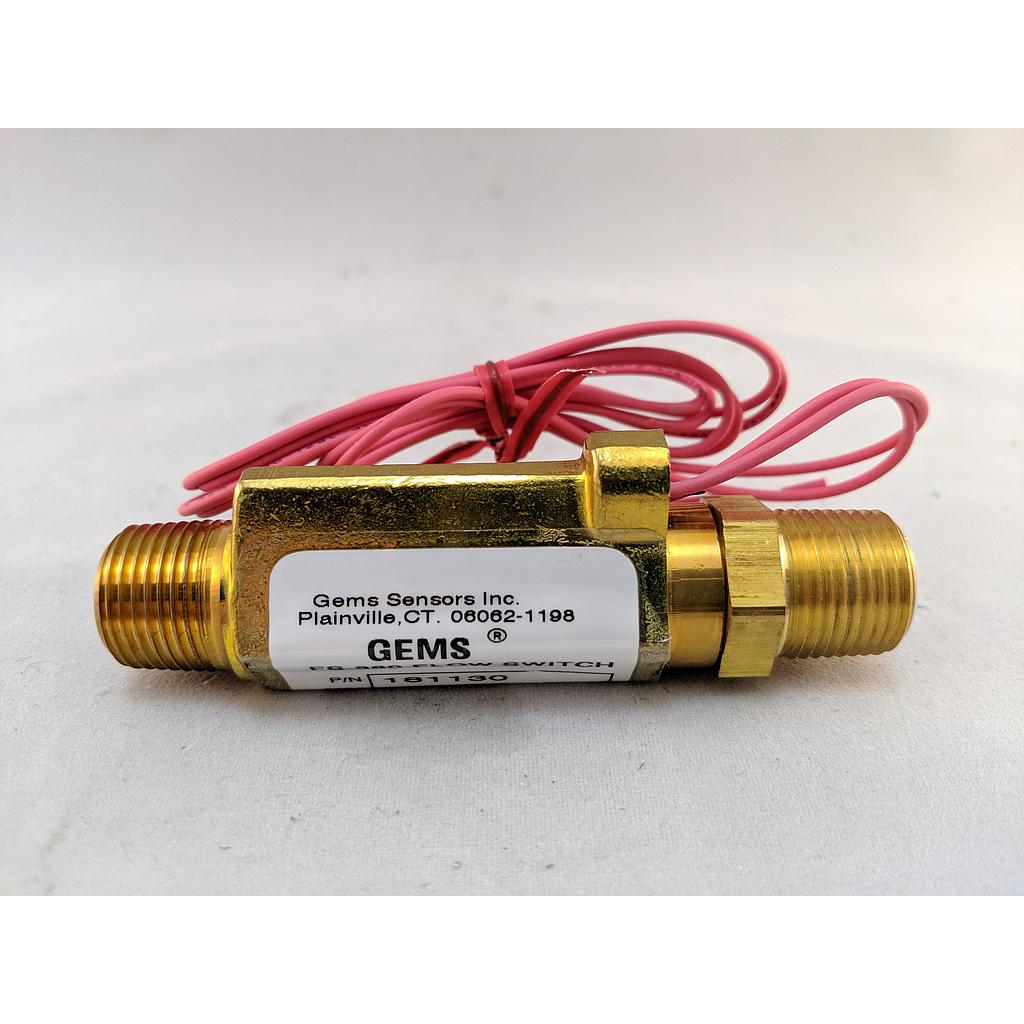

Representative photo. Please check item description for details.

FS-380 SERIES IN-LINE FLOW SWITCH BRASS 3/8" NPT 0.15 GPM

https://www.branom.com/web/image/product.template/161701/image_1920?unique=806570f
(0 review)

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 181130

Weight: 0.38 lb(s)

On Hand: 1

FS-380 Series Flow Switch is a rugged, inline flow switch that uses 100 micron filtration and is less susceptible to clogging than other high-pressure inline flow switches. The one-piece magnetic PPS composite piston makes the FS-380 ideal for high-pressure

applications such as industrial cleaning equipment, as well as cooling applications where simple design and reliable operation are required.

  • Sku: 181130
  • Sensor Type: Piston Type
  • Model: FS-380
  • Primary Material Of Construction: Alloy
  • Body Material: Brass
  • Wetted Materials: Brass, PPS Composite, Epoxy, 316 Stainless Steel, Fluorocarbon
  • Minimum Pressure: Over 500 psi
  • Maximum Pressure: 1500 psi
  • Minimum Temperature: -20°F
  • Maximum Temperature: 275°F
  • Flow Setting: 0.15 GPM
  • Flow Setting Range: 0-1.0 GPM
  • Adjustable Range: N/A
  • Set Point Accuracy: ±20%
  • Set Point Differential: 20%
  • Switch Type: SPST, N.O. (20VA)
  • Port Size: 3/8" NPT Male
  • Electrical Termination: 24" Long, 22 AWG, Polymeric Leads
  • Recommended Filtration: 100 micron
  • Approvals: UL Recognized, CE
  • Weight: 0.375

    • $ 191.78 191.78 USD $ 191.78
