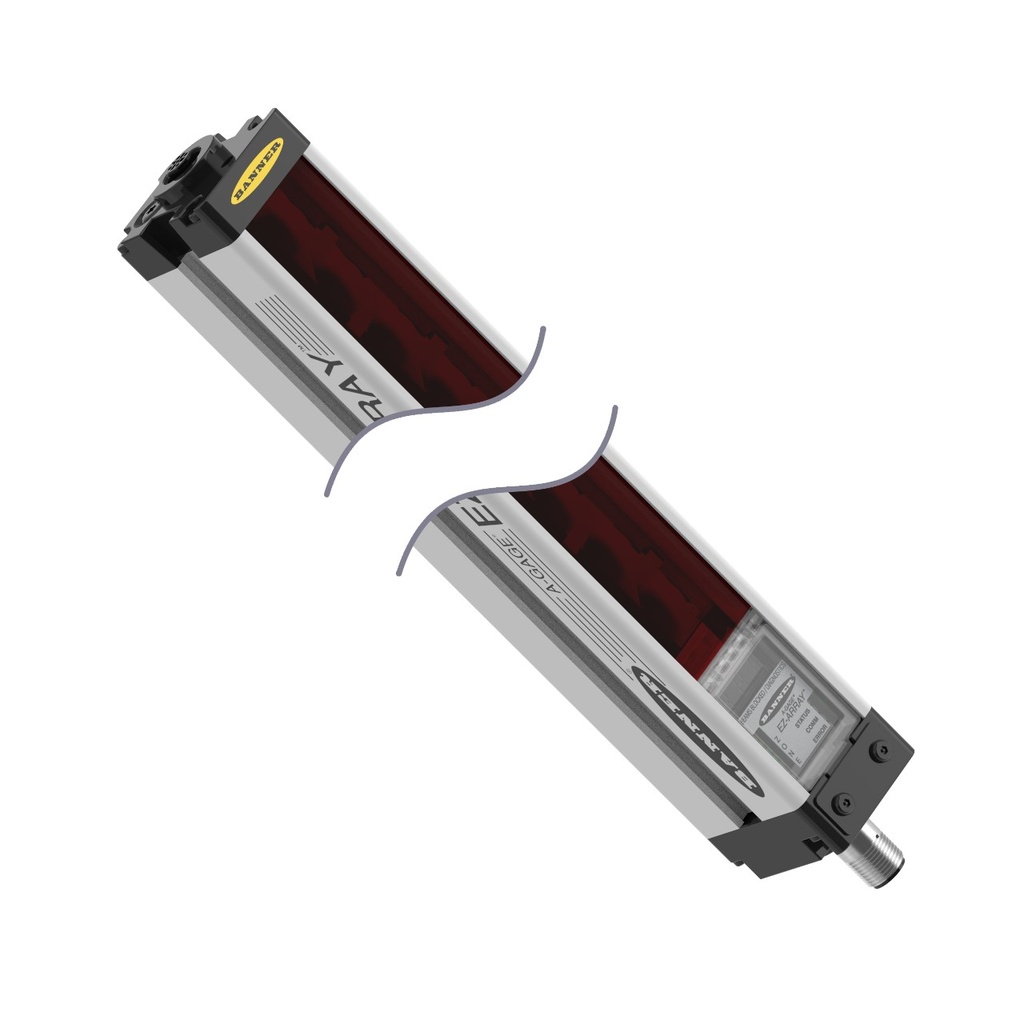

EEZ-ARRAY Short Range Reciever:450 mm (EA5R450NUXMODSRQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 17914
Weight: 2.5 lb(s)
On Hand: 0
EEZ-ARRAY Short Range Reciever:450 mm
Features:
- EEZ-ARRAY Short Range Reciever:450 mm
- Range 30-1500 mm
- Input 12-30 V dc
- Output 2 NPN Discrete
- Output 2 0 -10 V Analog
- EIA-485
- Euro 8-pin and Euro 5-pin Quick Disconnect
EEZ-ARRAY Short Range Reciever:450 mm (EA5R450NUXMODSRQ)
EEZ-ARRAY Short Range Reciever:450 mm
Feature: Discrete Outputs:NPN
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Power Supply:12-30 VDC
Measurement Minimum:0
Sensing Mode (Detailed):Receiver
Beam Spacing:5 mm
Device Type:Two-Piece
Housing Length:529 mm
Max Relative Humidity:95%
Number of Beams:90
Housing Material_:Aluminum
Feature: RS-485:Yes
Analog Output:0 to 10 VDC
Feature: Modbus RTU:Yes
Array Length:450 mm
Quick Disconnect Type:M12
Discrete Outputs:NPN
Country of Origin:MX
Emitter/Receiver Range:0.3 to 1.5 m
Feature: Short Range:Yes
Specifications
| Feature: Discrete Outputs | NPN |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Power Supply | 12-30 VDC |
| Measurement Minimum | 0 |
| Sensing Mode (Detailed) | Receiver |
| Beam Spacing | 5 mm |
| Device Type | Two-Piece |
| Housing Length | 529 mm |
| Max Relative Humidity | 95% |
| Number of Beams | 90 |
| Housing Material_ | Aluminum |
| Feature: RS-485 | Yes |
| Analog Output | 0 to 10 VDC |
| Feature: Modbus RTU | Yes |
| Array Length | 450 mm |
| Quick Disconnect Type | M12 |
| Discrete Outputs | NPN |
| Country of Origin | MX |
| Emitter/Receiver Range | 0.3 to 1.5 m |
| Feature: Short Range | Yes |
