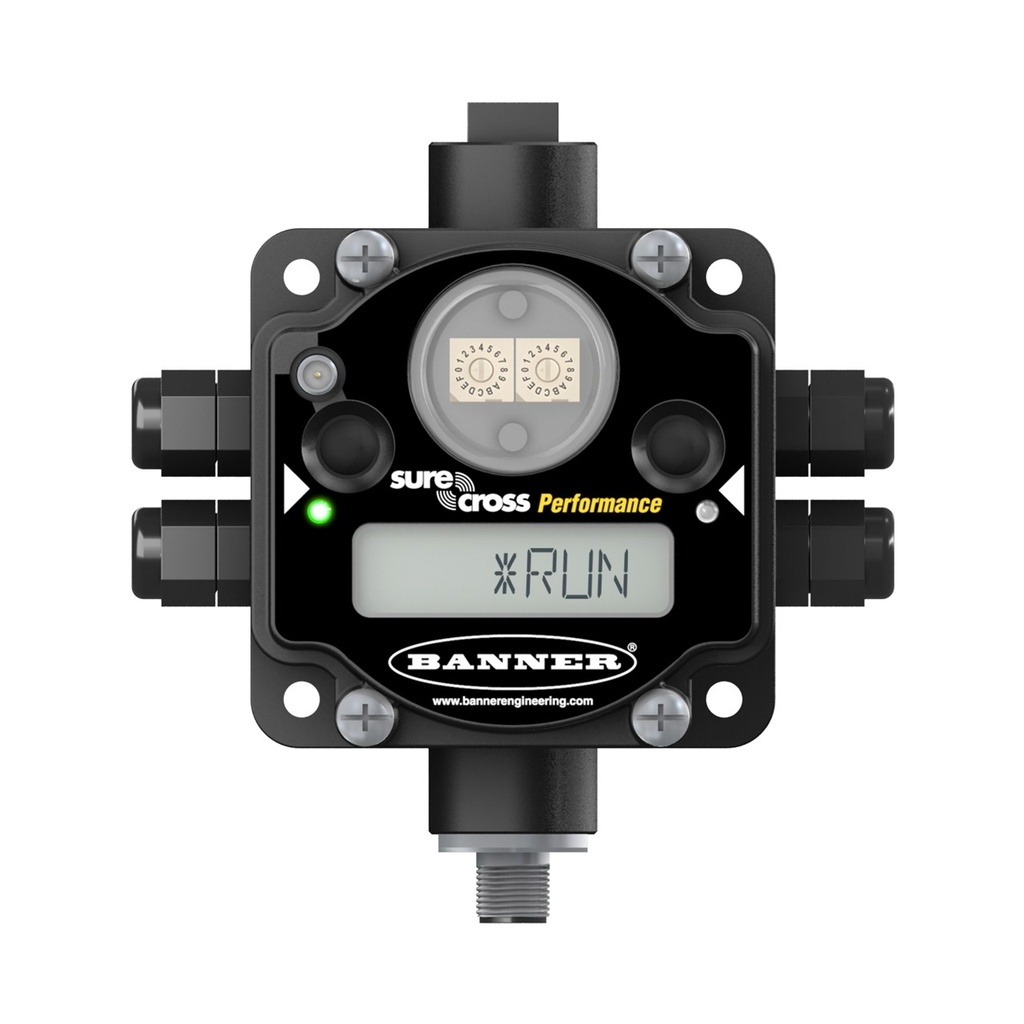

DX80 Perf 2.4 GHz Gateway 65 mW IP67 (DX80G2M2S-P7)
DX80 Perf 2.4 GHz Gateway 65 mW IP67
Power:Flex Power
Feature: Discrete Outputs:Yes
Min Operating Temperature:-40 °C
Max Operating Temperature:85 °C
Power Supply:10-30 VDC or 3.6-5.5 VDC low power option
Measurement Minimum:0
Ingress Protection:IP67, IP67
Housing Style:Enclosed Terminals
Device Type:Gateway
Feature: RS-232:No
Feature: RS-485:Yes
Feature: Has EtherNet/IP:No
Feature: Modbus/TCP:No
Feature: Hazardous Area:No
Feature: Modbus RTU:Yes
Feature: Wireless:Yes
Input/Output:Discrete
Relative Humidity:95%
Feature: LCD Display:Yes
Output Details:Up to 12 NMOS Sinking Outputs
Feature: Point-to-Point Topology:Yes
Feature: Point-to-Multipoint Topology:Yes
Feature: Ships With Battery:No
Input Details:Up to (12) Sinking Inputs
Feature: Discrete Inputs:Yes
Wireless Radio Frequency:2.4 GHz
Feature: Tree Topology:No
Feature: Star Topology:Yes
Country of Origin:US
NEMA / UL:NEMA 6
Specifications
| Power | Flex Power |
| Feature: Discrete Outputs | Yes |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Power Supply | 10-30 VDC or 3.6-5.5 VDC low power option |
| Measurement Minimum | 0 |
| Ingress Protection | IP67, IP67 |
| Housing Style | Enclosed Terminals |
| Device Type | Gateway |
| Feature: RS-232 | No |
| Feature: RS-485 | Yes |
| Feature: Has EtherNet/IP | No |
| Feature: Modbus/TCP | No |
| Feature: Hazardous Area | No |
| Feature: Modbus RTU | Yes |
| Feature: Wireless | Yes |
| Input/Output | Discrete |
| Relative Humidity | 95% |
| Feature: LCD Display | Yes |
| Output Details | Up to 12 NMOS Sinking Outputs |
| Feature: Point-to-Point Topology | Yes |
| Feature: Point-to-Multipoint Topology | Yes |
| Feature: Ships With Battery | No |
| Input Details | Up to (12) Sinking Inputs |
| Feature: Discrete Inputs | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| Feature: Tree Topology | No |
| Feature: Star Topology | Yes |
| Country of Origin | US |
| NEMA / UL | NEMA 6 |
