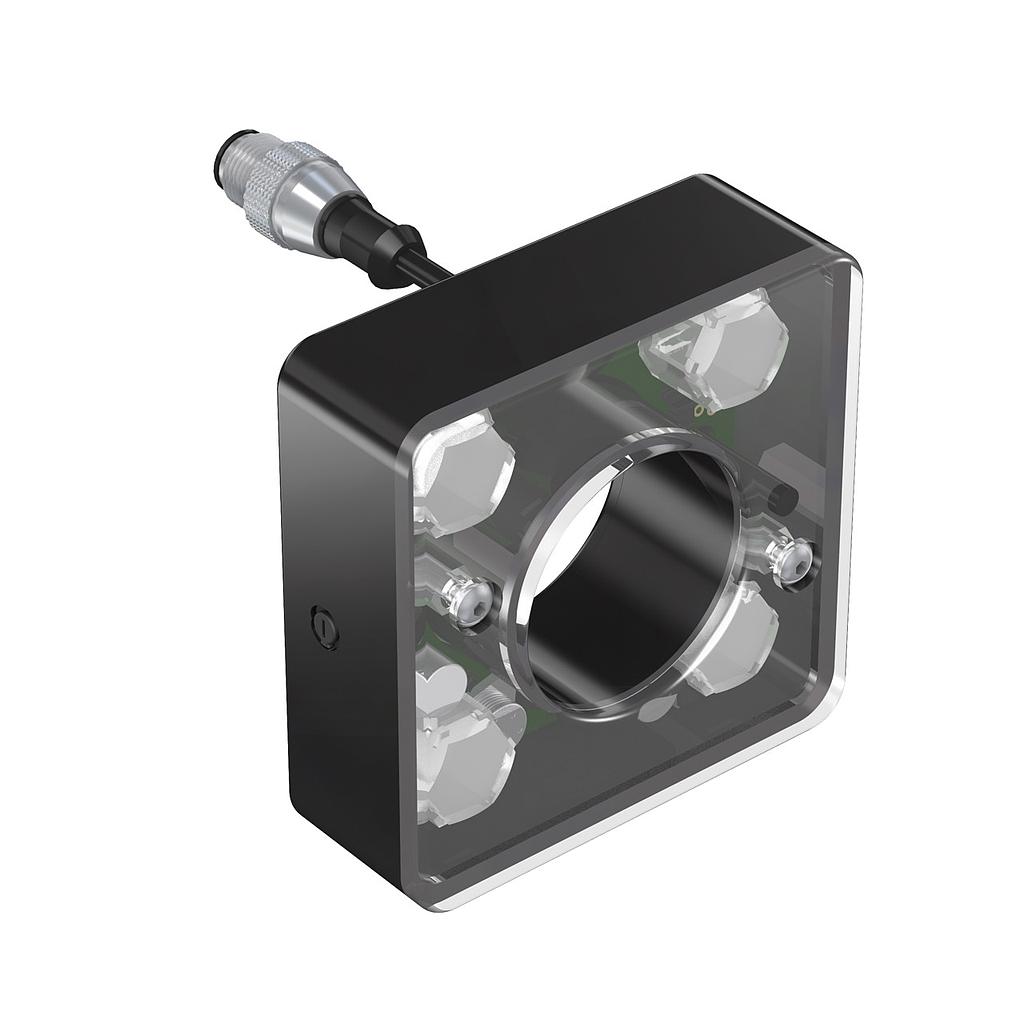

LED High Intensity Ring Light (LEDRR70XD5-XQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 17244
Weight: 0.55 lb(s)
On Hand: 0
LEDRR70XD5-XQ LED High Intensity Ring Light
Features:
- LEDRR70XD5-XQ LED High Intensity Ring Light
- LED Color: Red 620nm to 630nm
- Input: +24Vdc
- Light Intensity Adjustment
- 150mm (6in) Pigtail 5-pin Euro QD
LED High Intensity Ring Light (LEDRR70XD5-XQ)
LEDRR70XD5-XQ LED High Intensity Ring Light
Brand_Name:Banner
Manufacturer Product Family:VISION LIGHTS OTHER
Power:DC
Measurement Maximum:0
Max Current Color:350 mA
Max Operating Temperature:50 °C
Measurement Minimum:0
Housing Style:Rectangular
Device Type:Ring Light
Housing Material_:Anodized Aluminum
Physical Dimensions:76.2 x 76.2 x 38.7 mm
Supply Voltage:24 V DC
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Number of Input Pins/Conductors:5
Color:Red
QD Type/Cable Length:M12; requires mating cordset
Connection Type:Integral QD, Integral QD
Country of Origin:US
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | VISION LIGHTS OTHER |
| Power | DC |
| Measurement Maximum | 0 |
| Max Current Color | 350 mA |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Device Type | Ring Light |
| Housing Material_ | Anodized Aluminum |
| Physical Dimensions | 76.2 x 76.2 x 38.7 mm |
| Supply Voltage | 24 V DC |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Number of Input Pins/Conductors | 5 |
| Color | Red |
| QD Type/Cable Length | M12; requires mating cordset |
| Connection Type | Integral QD, Integral QD |
| Country of Origin | US |
