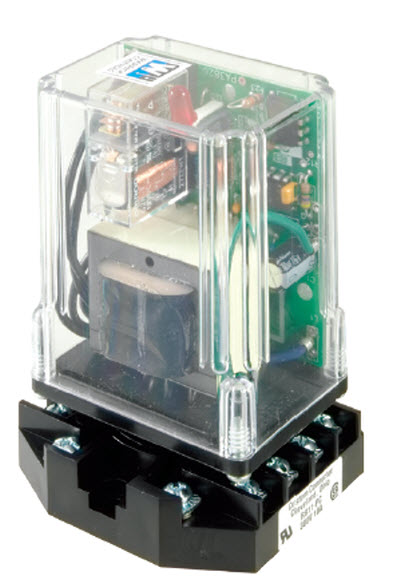

Series 16VM Field Selectable Sensitivity, 4.7 K to 1 M Ohm Sensitivity Range, 120VAC, 11 Pin Octal Plug-In Module

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 16VMA1A0

Weight: 1.0 lb(s)

Series 16M Solid State Plug-in Modules offer general purpose, high-sensitivity and field-sensitivity control as well as a DPDT load contact option. Series 16M

General Purpose Designed for either differential or single-level service. U.L. "Motor Controller"

listing, 8-pin socket with screw-type connections make the unit easy to install and service. Sensitivity of up to 1 million ohm/cm. Series 16DM

DPDT Load Contact Similar to Series 16M but with DPDT load contacts. Eliminates the need for slave relays.

11 pin octal plugs. Requires little panel space. General purpose single-level or diffferential applications. U.L. listed. Series 16HM

High Sensitivity Series 16HM is similar to Series 16M but provides higher sensitivity up to 5.5 million ohm/cm.

Probe voltage is 12 VDC for applications with low conductive media. Series 16VM

Field Selectable Sensitivity Similar to Series 16M but with the added flexibility of field adjustable sensitivity, made possible through external setpoint resistors.

Uses 11 pin octal socket. U.L. listed.

Sku: 16VMA1A0

Model: 16VM

Sensor Type: General Purpose Controls

Mode Of Operation: Direct

Sensitivity: 4.7 K to 1 M ohms

Control Style: Plug-In Module

Socket Style: 11 Pin Octal

Standoff Style: N/A

Enclosure: N/A

Contact Design: 1 Normally Open & 1 Normally Closed (non-powered)

Contact Rating: 10 Amp Resistive 1/3 horse power

Supply Voltage: 120 VAC

Secondary Voltage: 12 VAC

Terminal Style: Screw Connector

Minimum Temperature: -40°F

Maximum Temperature: 150°F

Protection: Non-Intrinsically Safe

Approvals: UL 508 General Purpose

Weight: 1.1
