  2. Warrick Low Level Cut Out Controller, 10K Ohm Sensitivity, 120VAC, DPDT Contacts, Retro-fit Plate Mount, General Purpose - Non-LWCO, 8 Second Delay
Public Pricelist (v2)

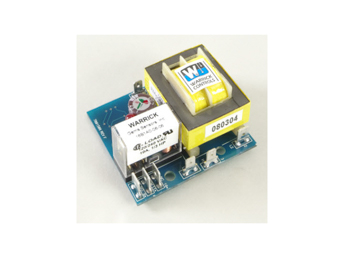

Representative photo. Please check item description for details.

Warrick Low Level Cut Out Controller, 10K Ohm Sensitivity, 120VAC, DPDT Contacts, Retro-fit Plate Mount, General Purpose - Non-LWCO, 8 Second Delay

https://www.branom.com/web/image/product.template/536692/image_1920?unique=b445f6f
(0 review)

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 16DB1D0R0808

Weight: 0.8 lb(s)

On Hand: 0

Model 16D
Mode of Operation Direct
Sensitivity 10 K
Control Style Open Board
Socket Style N/A
Standoff Style Retrofit
Enclosure None
Contact Design 2 Normally Open & 2 Normally Closed (non-powered)
Contact Rating 10 Amp Resistive 1/3 horse power
Secondary Voltage 12 VAC
Terminal Style Spade Connection
Number of Channels 1
Minimum Temperature (°F) -40
Maximum Temperature (°F) 150
Protection Non-Intrinsically Safe
Approvals UL 508 General Purpose

$ 295.54 295.54 USD $ 295.54

$ 295.54
