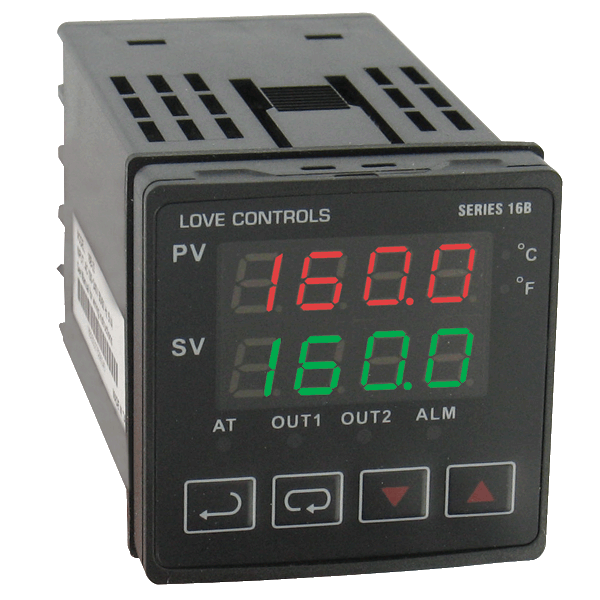

Dwyer 1/16 DIN temperature/process controller with pulsed voltage/pulsed voltage output and RS-485 communications.

Manufacturer: Dwyer Instruments Inc

Mfg Product Code: 16B-22

Weight: 0.25 lb(s)

Series
16B 1/16 DIN Temperature/Process Controller
Category/Type
Process Control
Type
Process Controllers
Series
16B 1/16 DIN Temperature/Process Controller
Inputs
Thermocouple; RTD; DC voltages or DC current.
Display
Two 4-digit; 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
Accuracy
±0.25% span; ±1 least significant digit.
Supply Voltage
100 to 240 VAC; 50/60 Hz or 24 VDC (depending onmodel).
Power Consumption
5 VA max.
Operating Temperature
32 to 122°F (0 to 50°C).
Memory Backup
Nonvolatile memory.
Control Output Ratings
Relay: SPST; 5 A @ 250 VAC resistive; Voltage Pulse: 14 V; 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Communication
RS-485 Modbus® A-5-11/RTU communication protocol.
