Turck Ultrasonic Sensor, Diffuse Mode Sensor (RU600U-EM30E-LIU2PN8X2T-H1151/3GD)
Manufacturer: Turck Incorporated
Mfg Product Code: 1610075
Weight: 0.69 lb(s)
On Hand: 0
Ultrasonic Sensor Features
- Diffuse Mode Sensor
- Max. range 6000 mm
- Smooth sonic transducer face

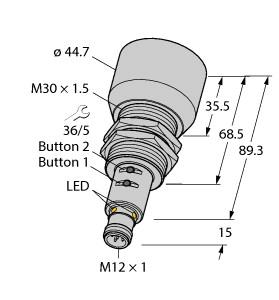

- Cylindrical housing M30
- potted
- Connection via M12 x 1 male
- Measuring range adjustable via teach button/Easy-Teach
- Temperature compensation
- Blind zone: 60 cm
- Range: 600 cm
- Resolution: 1 mm
- Aperture angle of sonic cone: ±15 °
- 1 × switching output
- PNP/NPN
- 1 × analog output
- 4…20 mA / 0…10 V / additional switching output
- PNP/NPN
- NO/NC programmable
- Transmission of process value and parametrization via IO-link
- ATEX II 3 G approval
- Gases and vapors
- Group IIC
- Zone 2
- Dust
- Group IIIC
- Zone 22
- When used in hazardous areas
- the special conditions of the approval must be observed
- SC-M12/3GD safety clips are included in delivery and prevent inadvertent disconnection of the energized cable
Turck Ultrasonic Sensor, Diffuse Mode Sensor (RU600U-EM30E-LIU2PN8X2T-H1151/3GD)
Measurement Maximum:0
Case Material:304 SS
Measurement Minimum:0
Output Communication Protocol:Multiple
Country of Origin:DE
Specifications
| Measurement Maximum | 0 |
| Case Material | 304 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | Multiple |
| Country of Origin | DE |
