Representative photo. Please check item description for details.

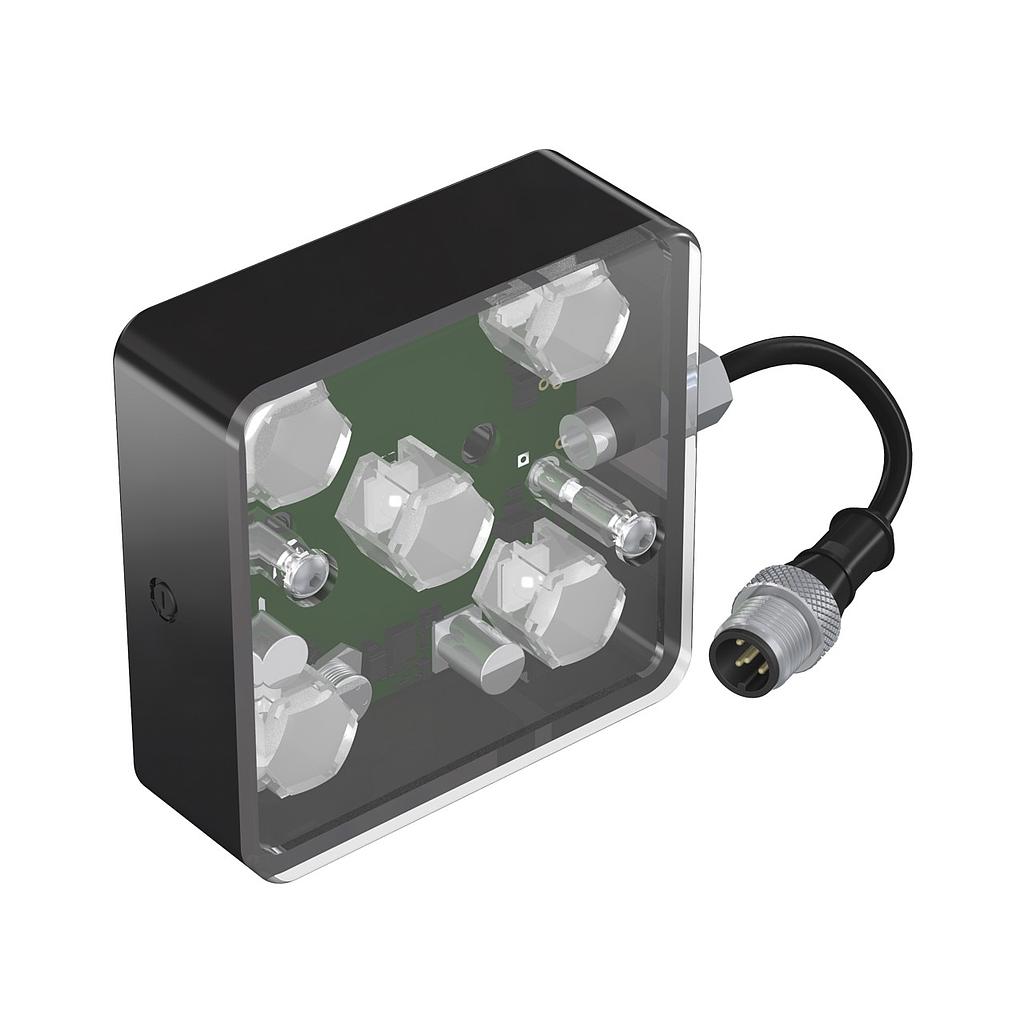

Vision Light - 70 mm Area with Potentiometer (LEDGA70XD5-PM)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 16096
Weight: 0.7 lb(s)
On Hand: 0
Vision Light 70 mm Area with Potentiometer
Features:
- Vision Light
- 70 mm Area with Potentiometer
- 5 High Intensity Green LEDs
- 24 V dc
- Clear Diffusing Plastic Window
- Connects directly to P4 sensor
Vision Light - 70 mm Area with Potentiometer (LEDGA70XD5-PM)
Vision Light 70 mm Area with Potentiometer
Power:DC
Measurement Maximum:0
Max Current Color:500 mA
Max Operating Temperature:50 °C
Measurement Minimum:0
Housing Style:Rectangular
Device Type:Area Light
Housing Material_:Low-Carbon Steel, Low-Carbon Steel
Physical Dimensions:76.2 x 76.2 x 29.2 mm
Supply Voltage:24 V DC
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Number of Input Pins/Conductors:3
Color:Green
QD Type/Cable Length:2 m; M8
Intensity Adjustment:Potentiometer
Connection Type:Pigtail QD
Country of Origin:US
Specifications
| Power | DC |
| Measurement Maximum | 0 |
| Max Current Color | 500 mA |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Device Type | Area Light |
| Housing Material_ | Low-Carbon Steel, Low-Carbon Steel |
| Physical Dimensions | 76.2 x 76.2 x 29.2 mm |
| Supply Voltage | 24 V DC |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Number of Input Pins/Conductors | 3 |
| Color | Green |
| QD Type/Cable Length | 2 m; M8 |
| Intensity Adjustment | Potentiometer |
| Connection Type | Pigtail QD |
| Country of Origin | US |
