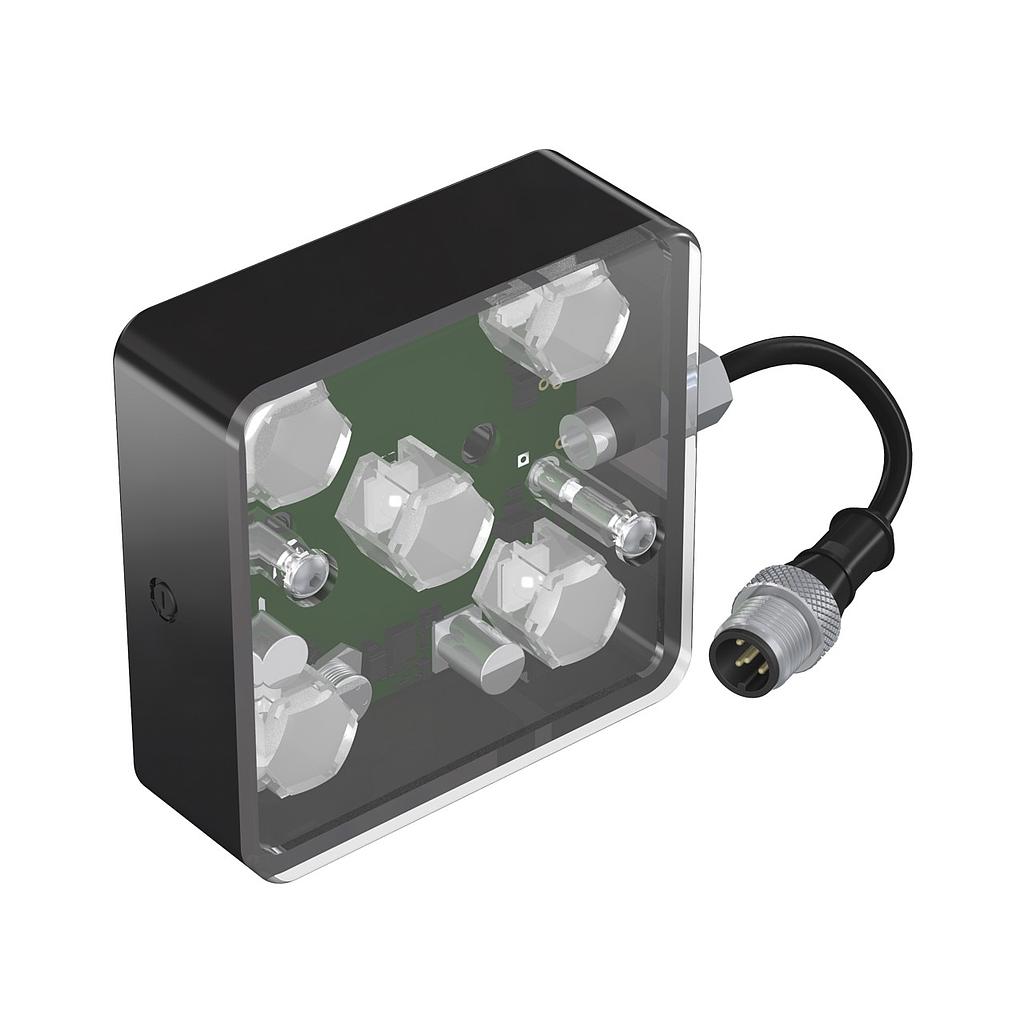

Representative photo. Please check item description for details.
Vision Light - 70 mm Area with Potentiometer (LEDBA70XD5-PQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 16068
Weight: 0.6 lb(s)
On Hand: 0
Vision Light 70 mm Area with Potentiometer
Features:
- Vision Light
- 70 mm Area with Potentiometer
- 5 High Intensity Blue LEDs
- 24 V dc
- Clear Diffusing Plastic Window
- Requires Cable MQDC20-xxx
Vision Light - 70 mm Area with Potentiometer (LEDBA70XD5-PQ)
Vision Light 70 mm Area with Potentiometer
Power:DC
Measurement Maximum:0
Max Current Color:500 mA
Max Operating Temperature:50 °C
Measurement Minimum:0
Housing Style:Rectangular
Device Type:Area Light
Housing Material_:Low-Carbon Steel, Low-Carbon Steel
Physical Dimensions:76.2 x 76.2 x 29.2 mm
Supply Voltage:24 V DC
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Number of Input Pins/Conductors:5
Color:Blue
QD Type/Cable Length:M12; requires mating cordset
Intensity Adjustment:Potentiometer
Connection Type:Integral QD
Country of Origin:US
Specifications
| Power | DC |
| Measurement Maximum | 0 |
| Max Current Color | 500 mA |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Device Type | Area Light |
| Housing Material_ | Low-Carbon Steel, Low-Carbon Steel |
| Physical Dimensions | 76.2 x 76.2 x 29.2 mm |
| Supply Voltage | 24 V DC |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Number of Input Pins/Conductors | 5 |
| Color | Blue |
| QD Type/Cable Length | M12; requires mating cordset |
| Intensity Adjustment | Potentiometer |
| Connection Type | Integral QD |
| Country of Origin | US |
