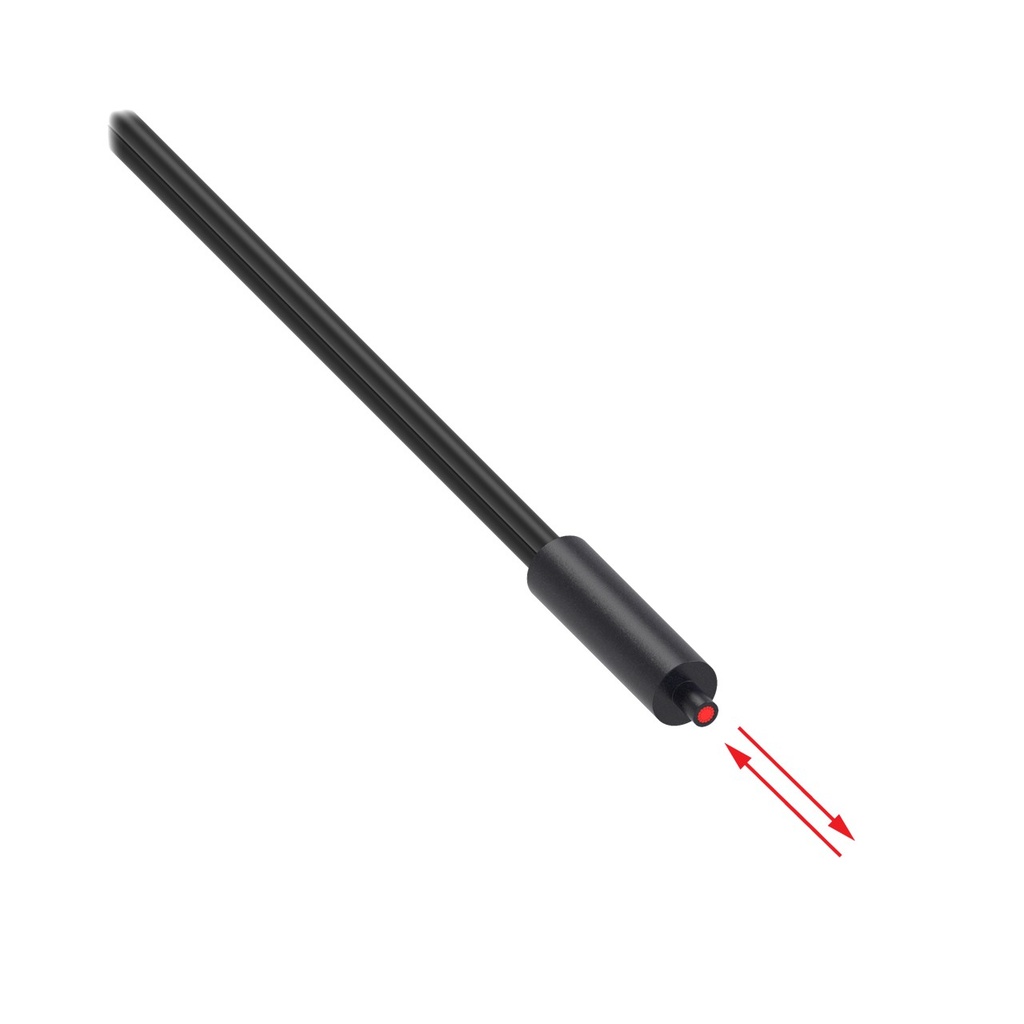

Plastic Fiber, Diffuse Reflective (PBCFP46UMLR)
Max Operating Temperature:70 °C
Housing Style:Round
Sensing Mode (Detailed):Coaxial
Sensing Mode (General):Diffuse
Feature: Chemical Resistant:No
Sensing End Segment 1:Ferrule
Tariff Fiber Meters:20 fbm
Min Bend Radius:5 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:2.3 mm
Feature: Retractile:No
Fiber Sensing End Tip:Probe
Termination:Free Cut
Sensing End Material (Specific):Polyethylene
Feature: Integrated Lens:Yes
Core Diameter:1.0 & 16 x 0.3 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Extended Range:No
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:5.9 mm
Fiber Length:2 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Probe
Beam Exit:In-line
Feature: Liquid Level:No
Min Hinged Door Size:5 mm
Min Repeat Bending Endurance:10000
Country of Origin:JP
Max Distance: DF-G1:No Data
Max Distance: DF-G3:No Data
Max Distance: DF-G2:No Data
Minimum Bend Radius:5 mm
Specifications
| Max Operating Temperature | 70 °C |
| Housing Style | Round |
| Sensing Mode (Detailed) | Coaxial |
| Sensing Mode (General) | Diffuse |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Ferrule |
| Tariff Fiber Meters | 20 fbm |
| Min Bend Radius | 5 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | 2.3 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Probe |
| Termination | Free Cut |
| Sensing End Material (Specific) | Polyethylene |
| Feature: Integrated Lens | Yes |
| Core Diameter | 1.0 & 16 x 0.3 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Extended Range | No |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 5.9 mm |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Probe |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Min Hinged Door Size | 5 mm |
| Min Repeat Bending Endurance | 10000 |
| Country of Origin | JP |
| Max Distance: DF-G1 | No Data |
| Max Distance: DF-G3 | No Data |
| Max Distance: DF-G2 | No Data |
| Minimum Bend Radius | 5 mm |
