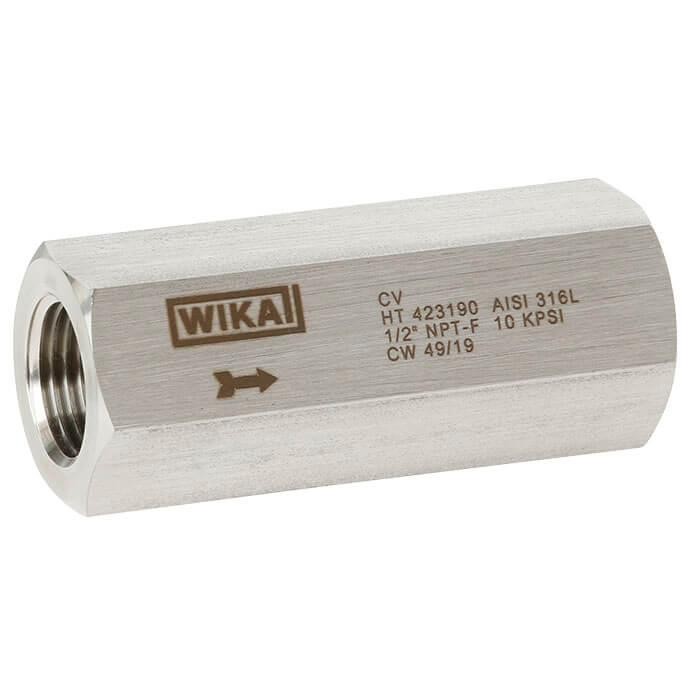

Representative photo. Please check item description for details.
Wika CV Series Piston Check Valve, 316/316L SS, 1/2" NPTF to 1/2" NPTF, 10000 psi
Manufacturer: Wika Instrument Lp
Mfg Product Code: 14523319
Weight: 0.5 lb(s)
On Hand: 0
CV5 TH/TH P 10K 1/2 NPT F/F 316/316L
Applications
- Oil and gas industry, chemical and petrochemical industries, power plants
- Prevents the backflow of gases or liquids in measuring circuits
- For injection systems, actuator controls, test benches, hydraulic power packs
Special Features
- Safety factor 4:1 for pressurised parts
- One-piece, robust case construction prevents leaks
- High repeatability and bubble-tight sealing through self-centring piston
- Redundant sealing with O-ring and metal cone
- Leak-tested tightness in accordance with BS6755 / ISO 5208 leakage rate A
Features
- CV5 TH/TH P 10K 1/2 NPT F/F 316/316L
- Instrument Check Valves
- Function: Single check
- Design type: Threaded/Threaded
- Version: Piston type
- Internal bore: 10mm [0.39"]
- Pressure rating: 10000 PSI - 690 bar
- Connection size and type: 1/2" NPT female/female
- Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
- Material packing:
- Cracking pressure: 1.38 bar [20 PSI] ± 30%
- Certificates/Approvals: NACE MR0175 Sour Gas Service &
- Inspection certificate 3.1, EN 10204, all wetted parts material
Wika CV Series Piston Check Valve, 316/316L SS, 1/2" NPTF to 1/2" NPTF, 10000 psi
CV5 TH/TH P 10K 1/2 NPT F/F 316/316L
Process Connection Type:NPT-Female
Instrument Connection Size:1/2"
Instrument Connection Type:NPT-Female
Valve Material:316/316L SS
Pressure Rating:10000 psi
Packings:NBR
Specifications
| Process Connection Type | NPT-Female |
| Instrument Connection Size | 1/2" |
| Instrument Connection Type | NPT-Female |
| Valve Material | 316/316L SS |
| Pressure Rating | 10000 psi |
| Packings | NBR |
