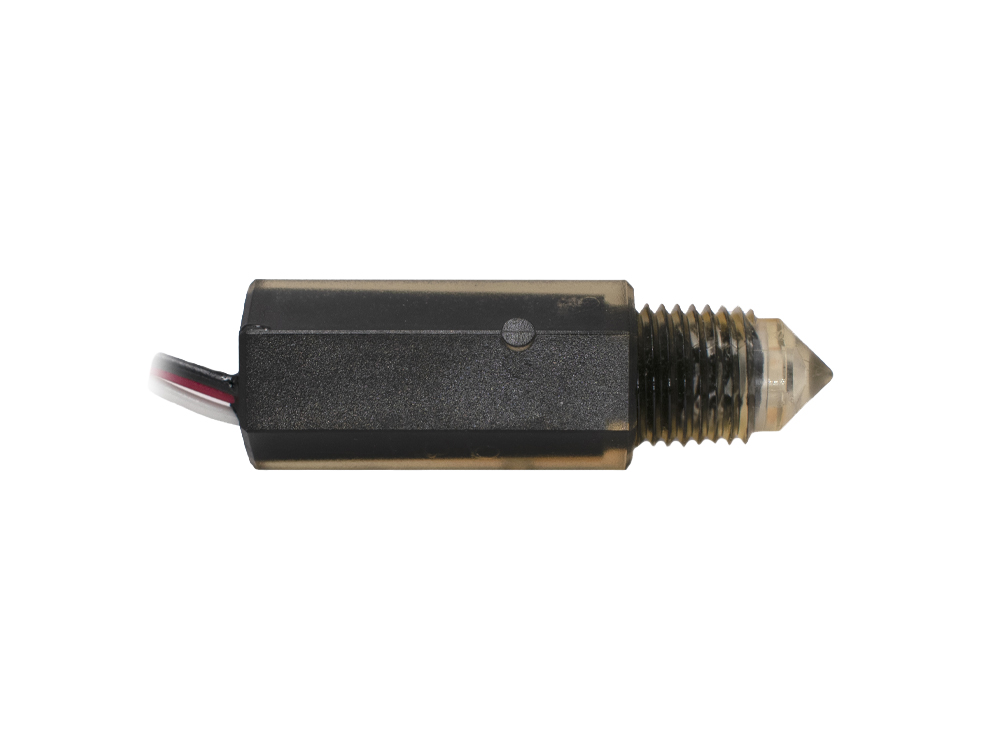

Electro-Optic Level Sensor, Polysulfone, 10-28 VDC Wet, "Fish" Pull Ring , ELS-1100

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 143577

Weight: 0.5 lb(s)

ELS-1100 Series Single-Point Level Switch is a compact, economical, no moving parts polysulfone level sensor with built-in switching electronics. A variety of mountings, power requirements and electrical terminations are available. These level switch units are suitable for high, low or intermediate level detection. Installation is simple and quick through the tank top, bottom or side. The sensor offers ±1 mm repeatability and broad liquid compatibility. They are not recommended for use in any liquid that crystallizes or leaves a solid residue.

- Sku: 143577
- Model: ELS-1100
- Sensor Type: Electro-Optic
- Primary Material Of Construction: Plastic
- Wetted Materials: Polysulfone
- Stem Material: Polysulfone
- Float Material: N/A
- Float Diameter: N/A
- Actuation Level: N/A
- Min. Liquid SG: N/A
- Maximum Pressure: 150 psi
- Minimum Temperature: 0°F
- Maximum Temperature: 176°F
- Mounting Size: "Fish" Pull Ring
- Mounting Style: Vertical or Horizontal
- Electrical Termination: 12" Long, 22 AWG, PVC Leads
- Switch Type: TTL/CMOS Compatible
- Switch Operation: Normally Open: (Non-Reversible)
- Input: 10-28 VDC
- Output: Sink 40 mA max, up to 30 VDC
- Approvals: UL Recognized
