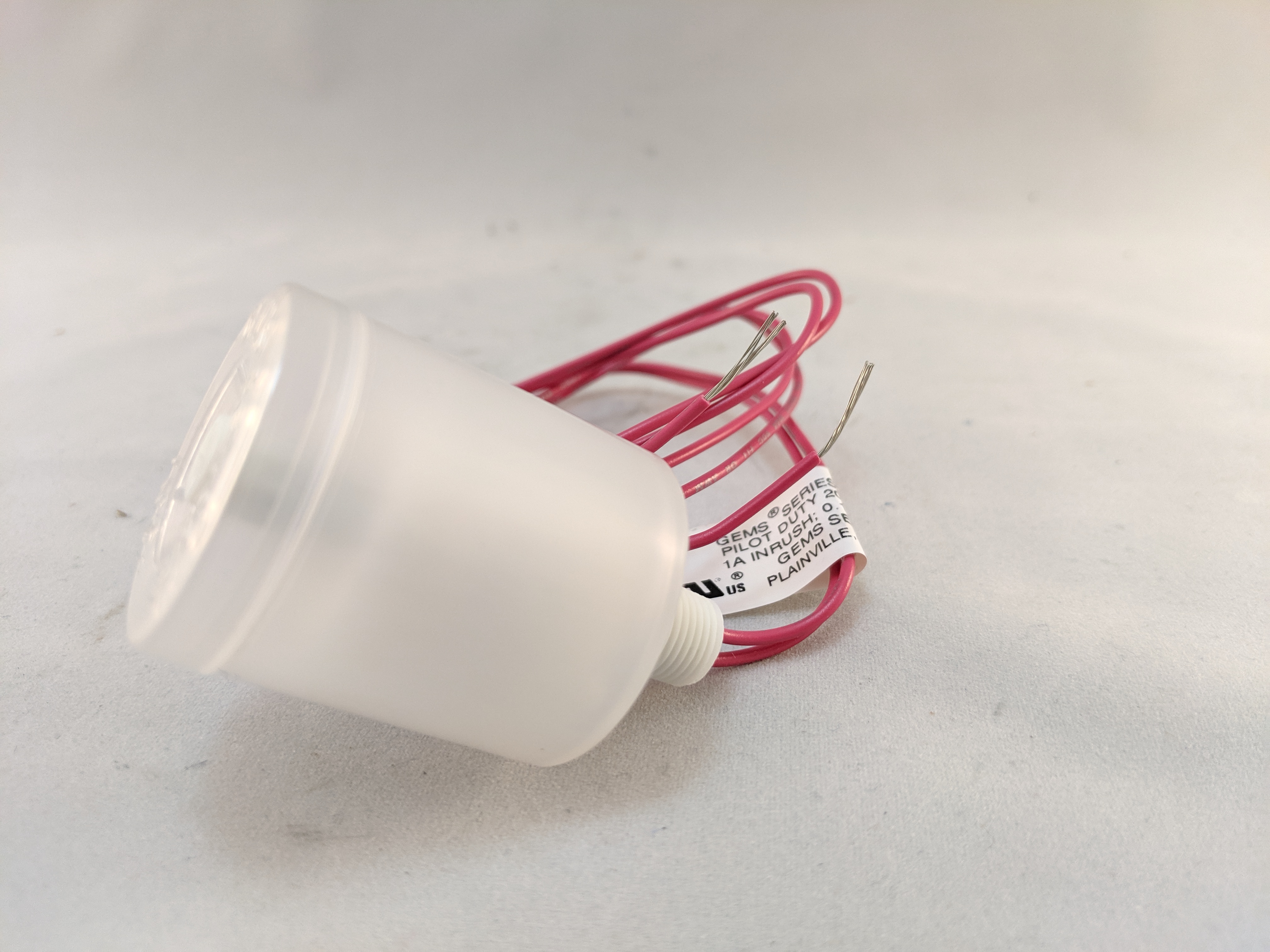

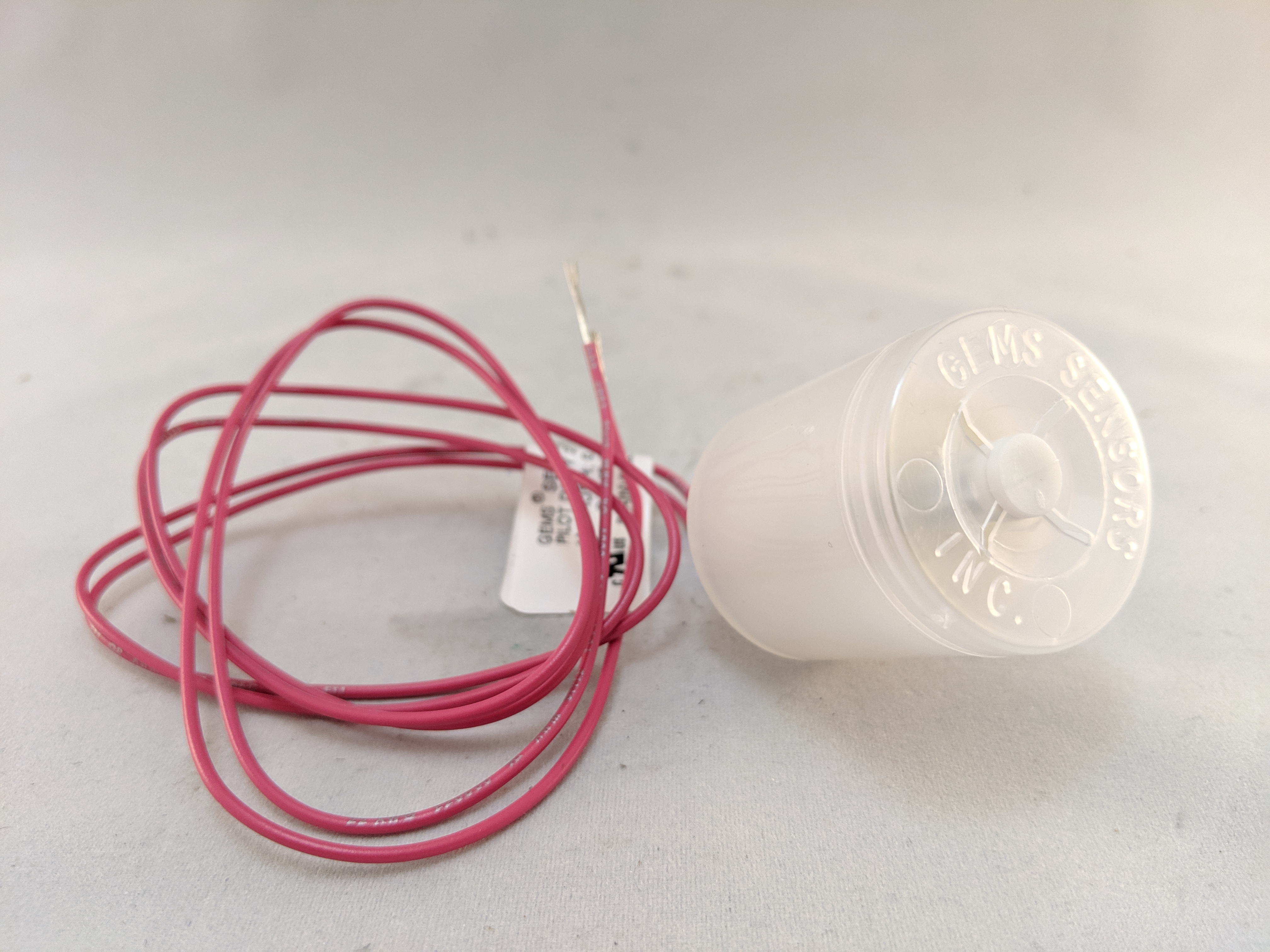

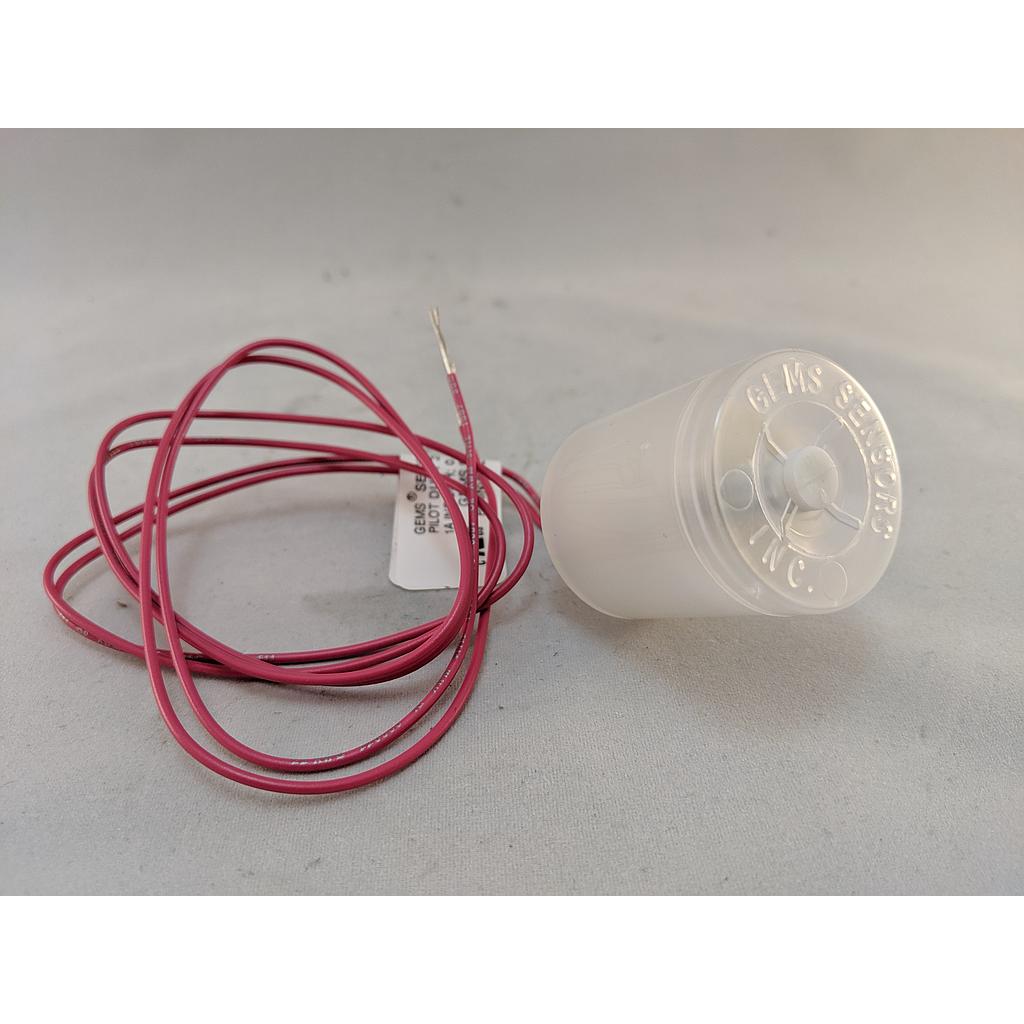

LS-3 ALL POLYPROPYLENE SOLID FLOAT WITH SLOSH SHIELD, .90 MINIMUM SPECIFIC GRAVITY

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 142545

Weight: 0.35 lb(s)

The durable construction of these reed switch designs ensures long, trouble-free service. Because the effects of shock, wear and vibration are minimized, these hermetically sealed level switches provide precise repeatability with no more than 1% deviation.

The level switch actuation points remain constant over the life of the unit. Ideal for shallow tanks or restricted spaces, or for any low-cost, high volume use. LS-3 Series are available in FDA/NSF compliant materials upon request, consult Gems for

details. NEW LS-3 MICRO: Gems' newest addition to the LS-3 series family is the LS-3 Micro. It is the smallest LS-3 series switch available. These units are ideal for potable water, medical devices and other compact appliances such as printers. Gems

LS-3 Micro float enables use in lighter-than-water fluids. These switches are also made with FDA compliant material, which expands the scope in which these floats can be used.

Sku: 142545

Model: LS-3

Sensor Type: Float Type

Primary Material Of Construction: Plastic

Wetted Materials: Polypropylene

Stem Material: Polypropylene

Float Material: Polypropylene: (Solid)

Float Diameter: 1"

Actuation Level: 9/16"

Min. Liquid SG: 0.9

Maximum Pressure: 150 psi

Minimum Temperature: -40°F

Maximum Temperature: 150°F

Mounting Size: 1/8" NPT Male

Mounting Style: Vertical

Electrical Termination: 24" Long, 22 AWG, PVC Leads

Switch Type: SPST (20 VA)

Switch Operation: Normally Open: (Reversible)

Input: N/A

Output: N/A
