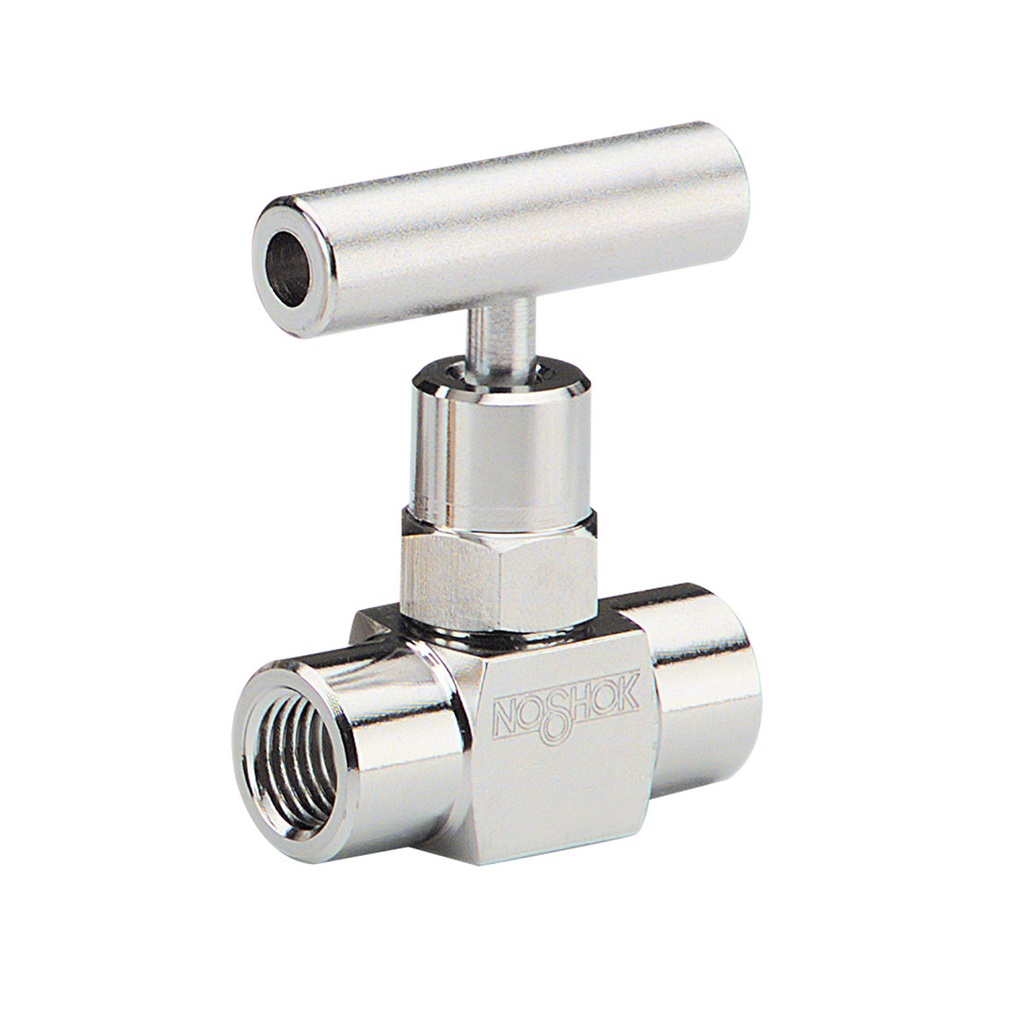

100 Series Mini, Hard Seat Needle Valve, 7/16-20 Unified Fine UNF 2B, Female x Female, Extended, Steel, 0.172" Orifice
Manufacturer: Noshok Inc
Mfg Product Code: 142-EFFC
Weight: 0.5 lb(s)
On Hand: 0
7/16-20 Unified Fine UNF 2B, Female x Female, Extended, Steel, 0.172" Orifice Hard Seat Mini Valve
- Compact size valve built for maximum durability and robust performance in the toughest applications
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
100 Series Mini, Hard Seat Needle Valve, 7/16-20 Unified Fine UNF 2B, Female x Female, Extended, Steel, 0.172" Orifice
7/16-20 Unified Fine UNF 2B, Female x Female, Extended, Steel, 0.172" Orifice Hard Seat Mini Valve
Brand_Name:Noshok
Orifice Size:0.172 in
Valve Type:Extended Female-Female
Valve Material:Steel
Pressure Rating:10,000 psi @ 200 °F
Flow Coefficient:Cv 0.42
Process Connection Size:7/16"-20
Body Material:Steel
Seat Type:Hard Seat
Specifications
| Brand_Name | Noshok |
| Orifice Size | 0.172 in |
| Valve Type | Extended Female-Female |
| Valve Material | Steel |
| Pressure Rating | 10,000 psi @ 200 °F |
| Flow Coefficient | Cv 0.42 |
| Process Connection Size | 7/16"-20 |
| Body Material | Steel |
| Seat Type | Hard Seat |
