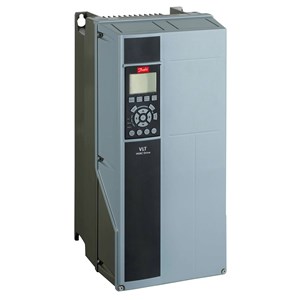

VLT AQUA Drive FC-202 Series, 25 HP / 18.5 KW, 380-480 VAC, 3 Phase, IP66 / NEMA 4X Backplate, FC-202P18KT4P66H2XGXXXXSXXXXAXBXCXXXXDX

Manufacturer: Danfoss LLC

Mfg Product Code: 136Z6452

Weight: 46.0 lb(s)

• Product Group (FC-) VLT® AQUA Drive FC-
• Series: 202
• Power Rating: (P18K) (P18K) 18.5 KW / 25 HP
• Phase: (T) Three phase
• Mains Voltage: (4) 380 - 480 VAC
• Enclosure: (P66) (P66) IP66 / NEMA 4X Backplate
• RFI Filter: (H2) RFI Filter
• Brake - Safe Stop: (X) No brake chopper
• LCP: (G) Graphical Loc. Cont. Panel
• Coating PCB: (X) Not coated PCB
• Mains Option: (X) No Mains Option
• Adaptation A: (X) Standard Cable Entries
• Adaptation B: (X) No adaptation
• Software Release: (SXXX) Latest release std. SW.
• Software Language Pack: (X) Standard Language Pack
• A Option: (AX) No A Option
• B Option: (BX) No B Option
• C0 Option MCO: (CX) No C0 option
• C1 Option: (X) No C1 option
• C Option Software: (XX) No software option
• D Option: (DX) No D option
• Frame Size: B1
• Height [mm]: 480,0
• Width w/ no C options [mm]: 242,0
• Depth [mm]: 260,0
• Depth with Option A/B [mm]: 260,0
• Calculated Net Weight [kg]: 23.2
• Power Loss NO [W]: 465
• Power Loss NO [W]: 465
• Power Loss HO [W]: 379
• Power Loss HO [W] : 379
