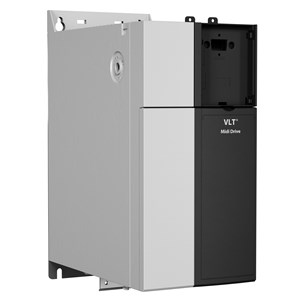

Representative photo. Please check item description for details.
VLT Midi Drive FC-280 Series, 20 HP / 15 KW, 380-480 VAC, 3 Phase, IP20 / Chassis, FC-280P15KT4E20H2BXCXXXSXXXXAL
Manufacturer: Danfoss LLC
Mfg Product Code: 134U7780
Weight: 20.0 lb(s)
On Hand: 0
- Product Group: (FC-) VLT® Midi Drive FC-
- Series: 280
- Power Size: (P15K) 15 kW / 20 HP
- Voltage: (T4) Three phase 380-480 VAC
- Enclosure: (E20) IP20 / Chassis
- RFI Filter: (H2) EMC Cat C3 (200/400V)
- Brake & Stop: (B) Brake chopper
- Display: (X) No display
- Coating: (C) Coated PCB
- Mains Option: (X) No mains options
- Adaptation A: (X) No Adaption
- Adaptation B: (X) No Adaption
- Special Version: (SXXX) Latest release
- Spare part - SW Language Pack: X
- Control Card: (AL) Integrated PROFINET
- Frame Size: K4
- Power 160% (HO) [KW]: 15
- Height [mm]: 317.5
- Width w/ no C options [mm]: 133.0
- Depth [mm]: 245.0
- Calculated Net Weight [kg]: 8.2
- Continuous Current (HO) [A] 3x380-440VAC: 31
- Intermittent Current (HO) [A] 3x380-440VAC: 46.5
- Continuous Current (HO) [A] 3x440-480VAC: 27
- Intermittent Current (HO) [A] 3x440-480VAC: 46.5
- Power Loss HO [W] 3x380-440VAC 3x440-480VAC: 393.4
- kVA: 21.5
VLT Midi Drive FC-280 Series, 20 HP / 15 KW, 380-480 VAC, 3 Phase, IP20 / Chassis, FC-280P15KT4E20H2BXCXXXSXXXXAL
