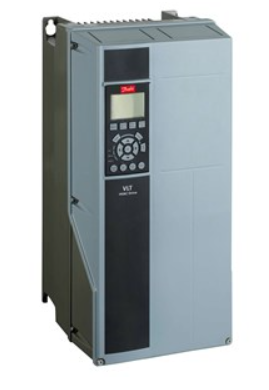

VLT AutomationDrive EZ FC-321, 10 HP / 7.5 KW, 200-240 VAC, 3 Phase, FC-321P7K5T2P66H2BGXXSXSXXXXANBXCXXXXDX

Manufacturer: Danfoss LLC

Mfg Product Code: 132L5225

Weight: 8.0 lb(s)

Product Group: (FC-) VLT® AutomationDrive EZ
VLT Series: 321
Power Rating: (P7K5) (P7K5) 7.5 KW / 10 HP
Voltage: (T2) Three phase 200-240 VAC
Enclosure: (P66) IP66 / NEMA 4X Backplate
RFI Filter: (H2) RFI Class A2 (C3)
Brake - Safe Stop: (B) Brake chopper
LCP: (G) Graphical Local Control Panel
Coating PCB: (X) Not coated PCB
Mains Option: (X) No Mains Option
Adaptation A: (S) Smooth imperial cable entries
Adaptation B: (X) No adaptation
Software Release: (SXXX) Latest release - std. software
Software Language Pack: (X) Standard Language Pack
A Option: (AN) EtherNet/IP MCA 121

• Product Group: (FC-) VLT® AutomationDrive EZ
• VLT Series: 321
• Power Rating: (P7K5) (P7K5) 7.5 KW / 10 HP
• Voltage: (T2) Three phase 200-240 VAC
• Enclosure: (P66) IP66 / NEMA 4X Backplate
• RFI Filter: (H2) RFI Class A2 (C3)
• Brake - Safe Stop: (B) Brake chopper
• LCP: (G) Graphical Local Control Panel
• Coating PCB: (X) Not coated PCB
• Mains Option: (X) No Mains Option
• Adaptation A: (S) Smooth imperial cable entries
• Adaptation B: (X) No adaptation
• Software Release: (SXXX) Latest release - std. software
• Software Language Pack: (X) Standard Language Pack
• A Option: (AN) EtherNet/IP MCA 121
• B Option: (BX) No B Option
• C0 Option: (CX) No C0 option
• C Option Software: (XX) No software option
• D Option: (DX) No D option
• Frame Size: B1
• Continuous Current (NO) [A] 3x200-240VAC: 46.2
• Intermittent Current (NO) [A] 3x200-240VAC: 50.8
• Continuous Current (HO) [A] 3x200-240VAC: 30.8
• Intermittent Current (HO) [A] 3x200-240VAC: 49.3
• Power Loss NO [W] 3x200-240VAC: 514
• Power Loss HO [W] 3x200-240VAC: 371
• kVA: 11.1
