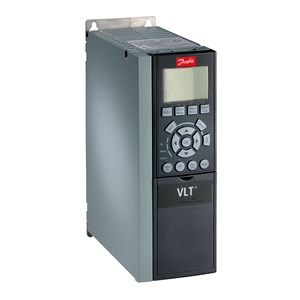

Representative photo. Please check item description for details.
VLT AQUA Drive FC-202 Series, 5.5 HP / 4.0 KW, 380-480 VAC, 3 Phase, IP20 / Chassis, FC-202P4K0T4E20H2XGXXXXSXXXXANBXCXXXXDX
Manufacturer: Danfoss LLC
Mfg Product Code: 131G7411
Weight: 10.8 lb(s)
On Hand: 0
- Product Group: (FC-) VLT® AQUA Drive FC-
- Series: 202
- Power Rating: (P4K0) (P4K0) 4.0 KW / 5.5 HP
- Phase: (T) Three phase
- Mains Voltage: (4) 380 - 480 VAC
- Enclosure: (E20) (E20) IP20 / Chassis
- RFI Filter: (H2) RFI Filter
- Brake - Safe Stop: (X) No brake chopper
- LCP: (G) Graphical Loc. Cont. Panel
- Coating PCB: (X) Not coated PCB
- Mains Option: (X) No Mains Option
- Adaptation A: (X) Standard Cable Entries
- Adaptation B: (X) No adaptation
- Software Release: (SXXX) Latest release std. SW.
- Software Language Pack: (X) Standard Language Pack
- A Option: (AN) EtherNet/IP MCA 121
- B Option: (BX) No B Option
- C0 Option MCO: (CX) No C0 option
- C1 Option: (X) No C1 option
- C Option Software: (XX) No software option
- D Option: (DX) No D option
- Frame Size: A2
- Power 110% (NO) [KW]: 4
- Power 150% (HO) [KW]: 4
- Height [mm]: 268,0
- Width w/ no C options [mm]: 90,0
- Width w/ one C options [mm]: 130,0
- Width w/ two C options [mm]: 150,0
- Depth [mm]: 205,0
- Depth with Option A/B [mm]: 220,0
- Calculated Net Weight [kg]: 4.9
- Continuous Current (NO) [A] 3x380-440VAC: 10
- Intermittent Current (NO) [A] 3x380-440VAC: 11
- Continuous Current (NO) [A] 3x440-480VAC: 8.2
- Intermittent Current (NO) [A] 3x440-480VAC: 9.02
- Continuous Current (HO) [A] 3x380-440VAC: 10
- Intermittent Current (HO) [A] 3x380-440VAC: 15
- Continuous Current (HO) [A] 3x440-480VAC: 8.2
- Intermittent Current (HO) [A] 3x440-480VAC: 12.3
- Power Loss NO [W] 3x380-440VAC: 124
- Power Loss NO [W] 3x440-480VAC: 124
- Power Loss HO [W] 3x380-440VAC: 124
- Power Loss HO [W] 3x440-480VAC: 124
VLT AQUA Drive FC-202 Series, 5.5 HP / 4.0 KW, 380-480 VAC, 3 Phase, IP20 / Chassis, FC-202P4K0T4E20H2XGXXXXSXXXXANBXCXXXXDX
