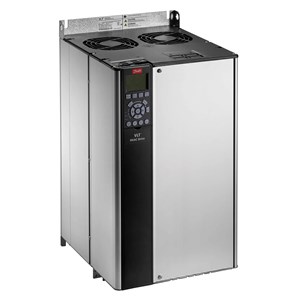

VLT AQUA Drive FC-202 Series, 60 HP / 45 KW, 380-480 VAC, 3 Phase, IP20 / Chassis, FC-202P45KT4E20H2XGXXXXSXXXXANBXCXXXXDX

Manufacturer: Danfoss LLC

Mfg Product Code: 131G3356

Weight: 76.5 lb(s)

• Product Group: (FC-) VLT® AQUA Drive FC-
• Series: 202
• Power Rating: (P45K) (P45K) 45 KW / 60 HP
• Phase: (T) Three phase
• Mains Voltage: (4) 380 - 480 VAC
• Enclosure: (E20) (E20) IP20 / Chassis
• RFI Filter: (H2) RFI Filter
• Brake - Safe Stop: (X) No brake chopper
• LCP: (G) Graphical Loc. Cont. Panel
• Coating PCB: (X) Not coated PCB
• Mains Option: (X) No Mains Option
• Adaptation A: (X) Standard Cable Entries
• Adaptation B: (X) No adaptation
• Software Release: (SXXX) Latest release std. SW.
• Software Language Pack: (X) Standard Language Pack
• A Option: (AN) EtherNet/IP MCA 121
• B Option: (BX) No B Option
• C0 Option MCO: (CX) No C0 option
• C1 Option: (X) No C1 option
• C Option Software: (XX) No software option
• D Option: (DX) No D option
• Frame Size: C3
• Power 110% (NO) [KW]: 45
• Power 150% (HO) [KW]: 37
• Height [mm]: 550,0
• Width w/ no C options [mm]: 308,0
• Depth [mm]: 333,0
• Depth with Option A/B [mm]: 333,0
• Calculated Net Weight [kg]: 36
• Continuous Current (NO) [A] 3x380-440VAC: 90
• Intermittent Current (NO) [A] 3x380-440VAC: 99
• Continuous Current (NO) [A] 3x440-480VAC: 80
• Intermittent Current (NO) [A] 3x440-480VAC: 88
• Continuous Current (HO) [A] 3x380-440VAC: 73
• Intermittent Current (HO) [A] 3x380-440VAC: 110
• Continuous Current (HO) [A] 3x440-480VAC: 65
• Intermittent Current (HO) [A] 3x440-480VAC: 97.5
• Power Loss NO [W] 3x380-440VAC: 843
• Power Loss NO [W] 3x440-480VAC: 843
• Power Loss HO [W] 3x380-440VAC: 697
• Power Loss HO [W] 3x440-480VAC: 697
• kVA: 62.4
