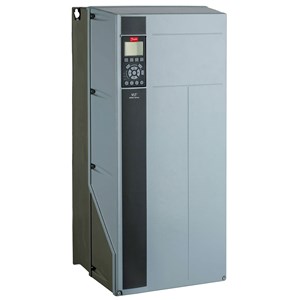

VLT AQUA Drive FC-202 Series, 100 HP / 75 KW, 380-480 VAC, IP66 / NEMA 4X, FC-202P75KT4E66H2XGXXXXSXXXXAXBXCXXXXDX

Manufacturer: Danfoss LLC

Mfg Product Code: 131B9534

Weight: 134.0 lb(s)

• Product Group: (FC-) VLT® AQUA Drive FC-
• Series: 202
• Power Rating: (P75K) (P75K) 75 KW / 100 HP
• Phase: (T) Three phase
• Mains Voltage: (4) 380 - 480 VAC
• Enclosure: (E66) (E66) IP66 / NEMA 4X
• RFI Filter: (H2) RFI Filter
• Brake - Safe Stop: (X) No brake chopper
• LCP: (G) Graphical Loc. Cont. Panel
• Coating PCB: (X) Not coated PCB
• Mains Option: (X) No Mains Option
• Adaptation A: (X) Standard Cable Entries
• Adaptation B: (X) No adaptation
• Software Release: (SXXX) Latest release std. SW.
• Software Language Pack: (X) Standard Language Pack
• A Option: (AX) No A Option
• B Option: (BX) No B Option
• C0 Option MCO: (CX) No C0 option
• C1 Option: (X) No C1 option
• C Option Software: (XX) No software option
• D Option: (DX) No D option
• Frame Size: C2
• Power 110% (NO) [KW]: 75
• Power 150% (HO) [KW]: 55
• Height [mm]: 770,0
• Width w/ no C options [mm]: 370,0
• Depth [mm]: 335,0
• Depth with Option A/B [mm]: 335,0
• Calculated Net Weight [kg]: 61
• Continuous Current (NO) [A] 3x380-440VAC: 147
• Intermittent Current (NO) [A] 3x380-440VAC: 162
• Continuous Current (NO) [A] 3x440-480VAC: 130
• Intermittent Current (NO) [A] 3x440-480VAC: 143
• Continuous Current (HO) [A] 3x380-440VAC: 106
• Intermittent Current (HO) [A] 3x380-440VAC: 159
• Continuous Current (HO) [A] 3x440-480VAC: 105
• Intermittent Current (HO) [A] 3x440-480VAC: 158
• Power Loss NO [W] 3x380-440VAC: 1384
• Power Loss NO [W] 3x440-480VAC: 1384
• Power Loss HO [W] 3x380-440VAC: 1022
• Power Loss HO [W] 3x440-480VAC: 1022
• kVA: 102
