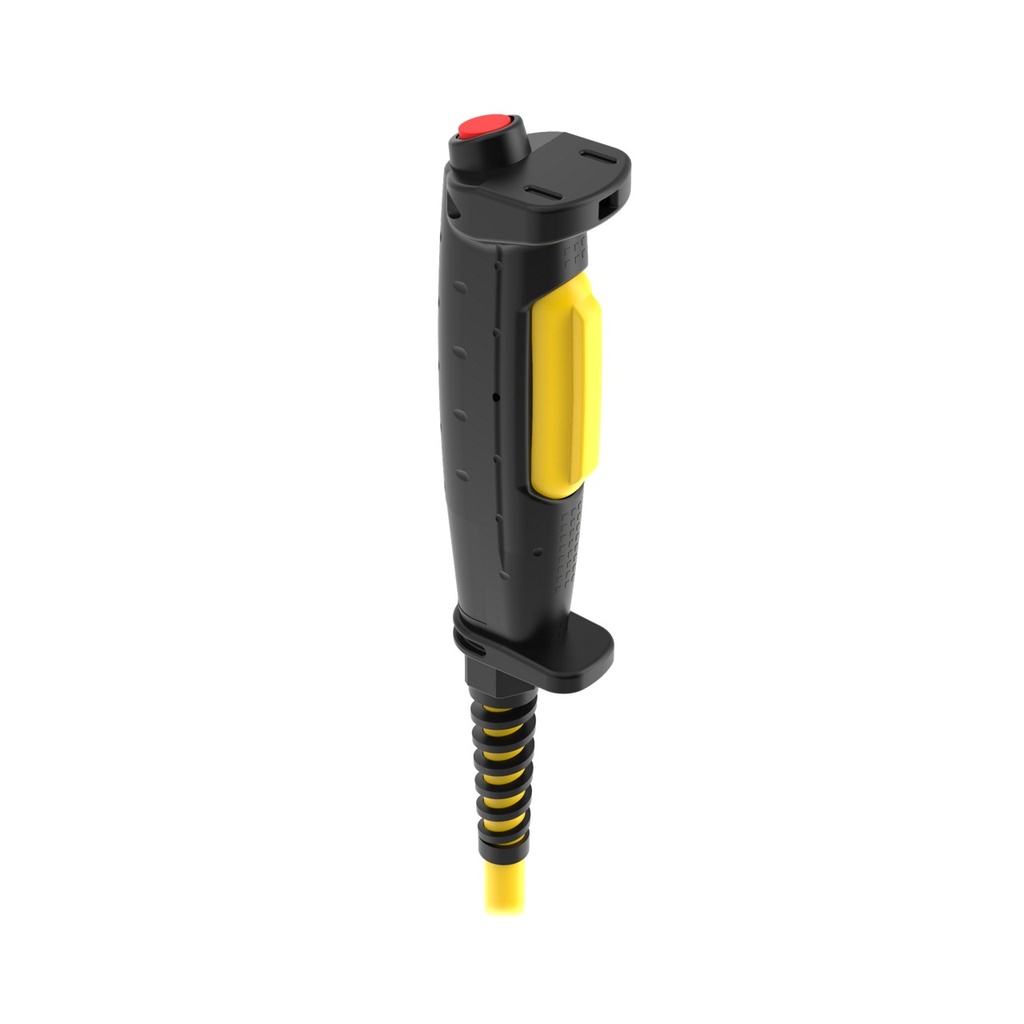

Three-position Enabling Device: 2 N/O and 1 N/C contacts (ED1G-L21SMB-1N)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 12935
Weight: 0.65 lb(s)
On Hand: 0
Features:
- Three-position Enabling Device: 2 N/O and 1 N/C contacts
- 1 N/O momentary pushbutton
- Connection: M20x1.5 conduit
- Cordset strain relief provided -
Three-position Enabling Device: 2 N/O and 1 N/C contacts (ED1G-L21SMB-1N)
Valve: Actuation:Manual
Measurement Maximum:0
Min Operating Temperature:-10 °C
Max Operating Temperature:60 °C
Measurement Minimum:0
Ingress Protection:IP65
Housing Style:HandleGrip Switch w/ Momentary Push Button
Device Type:Enabling Switch
Housing Material_:Thermoplastic
Physical Dimensions:269 x 46 x 58 mm
Feature: Quick Disconnect:No
Contact Quantity:2 NO, 1 NC, 1 NO Push-Button
Contact Rating:2 A @ 24 VDC
Feature: Lockable:No
Connection Type:Wiring Chamber
Country of Origin:JP
Feature: Button Shroud:No
Feature: Actuation:Manual
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Manual |
| Uncategorized | |
|---|---|
| Measurement Maximum | 0 |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 60 °C |
| Measurement Minimum | 0 |
| Ingress Protection | IP65 |
| Housing Style | HandleGrip Switch w/ Momentary Push Button |
| Device Type | Enabling Switch |
| Housing Material_ | Thermoplastic |
| Physical Dimensions | 269 x 46 x 58 mm |
| Feature: Quick Disconnect | No |
| Contact Quantity | 2 NO, 1 NC, 1 NO Push-Button |
| Contact Rating | 2 A @ 24 VDC |
| Feature: Lockable | No |
| Connection Type | Wiring Chamber |
| Country of Origin | JP |
| Feature: Button Shroud | No |
| Feature: Actuation | Manual |
