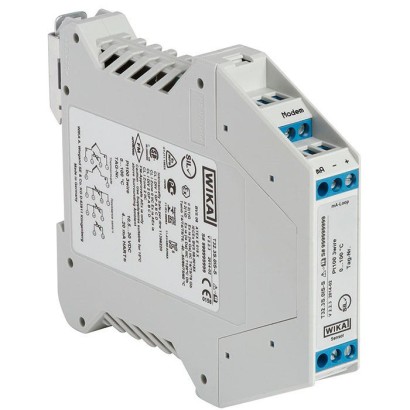

Wika T32 Digital Temperature Transmitter T32.3S.0IS-Z

Manufacturer: Wika Instrument Lp

Mfg Product Code: 12655474

Weight: 0.01 lb(s)

Specifications according to data sheet: TE 32.04
Output signal: 4 ... 20 mA, 2-wire-design
Input: configurable by means of software
Measuring range: configurable by means of software
model: T32.3S, rail mounting
Explosion protection: Ex ia, for ATEX/IEC/CSA/FM/EAC/KOSHA/NEPSI/INMETRO
SIL-Statement: not for SIL applications
HART revision: HART® 5
Configuration: basic configuration (Pt100, 3-wire, 0 ... 150 °C, signalling down scale < 3,6 mA)
Permissible ambient temperature : -40 °C ... +85 °C

Features:

• T32.1S.0IS-Z-GKS-ZZZ-Z, Head Mount, HART
• Digital temperature transmitter T32
• with HART-protocol
• Specifications according to data sheet: TE 32.04 (head-/railmounting T32.xS)
• Output signal: 4 ... 20 mA, 2-wire-design
• Input: configurable by means of software
• Measuring range: configurable by means of software
• model: T32.1S, head mounting
• Explosion protection: Ex ia, for ATEX/IEC/CSA/FM/EAC/KOSHA/NEPSI/INMETRO
• SIL-Statement: not for SIL applications
• HART revision: HART® 5
• Configuration: basic configuration (Pt100, 3-wire, 0 ... 150 °C, signalling down scale < 3,6 mA)
• Permissible ambient temperature : -40 °C ... +85 °C
• Customs tariff number: 9026204000
