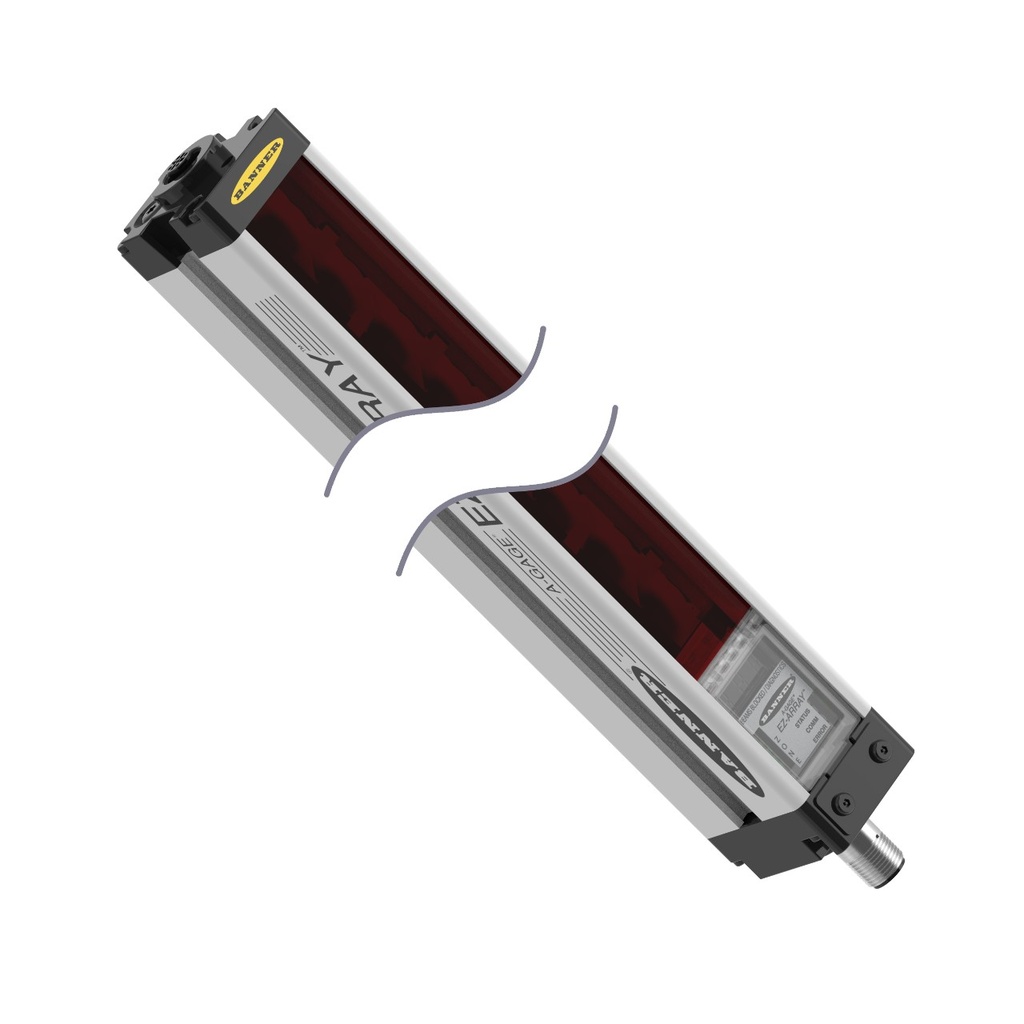

EZ-ARRAY Short Range Reciever:1050 mm (EA5R1050PIXMODSRQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 11859
Weight: 8.0 lb(s)
EZ-ARRAY Short Range Reciever:1050 mm
Features:
- EZ-ARRAY Short Range Reciever:1050 mm
- Range 30-1500 mm
- Input 12-30V dc
- Output 2 PNP Discrete
- Output 2 4 -20 ma Analog
- EIA-485
- Euro 8-pin and Euro 5-pin Quick Disconnect
EZ-ARRAY Short Range Reciever:1050 mm (EA5R1050PIXMODSRQ)
EZ-ARRAY Short Range Reciever:1050 mm
Brand_Name:Banner
Manufacturer Product Family:EZ-ARRAY
Feature: Discrete Outputs:PNP
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Power Supply:12-30 VDC
Measurement Minimum:0
Sensing Mode (Detailed):Receiver
Beam Spacing:5 mm
Device Type:Two-Piece
Housing Length:1128 mm
Max Relative Humidity:95%
Number of Beams:210
Housing Material_:Aluminum
Feature: RS-485:Yes
Feature: Modbus RTU:Yes
Array Length:1050 mm
Quick Disconnect Type:M12
Discrete Outputs:PNP
Feature: Analog Output(s):4 to 20 mA
Country of Origin:MX
Emitter/Receiver Range:0.3 to 1.5 m
Feature: Short Range:Yes
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | EZ-ARRAY |
| Feature: Discrete Outputs | PNP |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Power Supply | 12-30 VDC |
| Measurement Minimum | 0 |
| Sensing Mode (Detailed) | Receiver |
| Beam Spacing | 5 mm |
| Device Type | Two-Piece |
| Housing Length | 1128 mm |
| Max Relative Humidity | 95% |
| Number of Beams | 210 |
| Housing Material_ | Aluminum |
| Feature: RS-485 | Yes |
| Feature: Modbus RTU | Yes |
| Array Length | 1050 mm |
| Quick Disconnect Type | M12 |
| Discrete Outputs | PNP |
| Feature: Analog Output(s) | 4 to 20 mA |
| Country of Origin | MX |
| Emitter/Receiver Range | 0.3 to 1.5 m |
| Feature: Short Range | Yes |
