Turck Radar Sensor, Distance/Object Detection (DR15S-M30E-IOL8X2-H1141)

Manufacturer: Turck Incorporated

Mfg Product Code: 100030148

Weight: 0.75 lb(s)

Blind zone: 35 cm
Range: 15 m
Resolution: 1 mm
Cone angle of the radar beam: Standard ±7.5°
Approved acc. to ETSI 305550-2
Approved acc. to FCC/CFR 47 Part 15.
M12 × 1 male connector, 4-pin
Operating voltage 18…33 VDC
Operating voltage 10…33 VDC (in SIO mode)
Switching output switchable between PNP/NPN
Analog output switchable between 4…20 mA/0…10 V
Automatic current/voltage detection
IO-Link

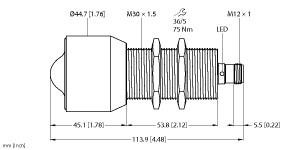

M30 cylindrical design, stainless steel

Radar Sensor Features

• Distance/Object Detection
• Operating voltage 18…33 VDC
• Max. range 15000 mm
• Blind zone: 35 cm
• Range: 15 m
• Resolution: 1 mm
• Cone angle of the radar beam: Standard ±7.5°
• Approved acc. to ETSI 305550-2
• Approved acc. to FCC/CFR 47 Part 15.
• M12 × 1 male connector
• 4-pin
• Operating voltage 18…33 VDC
• Operating voltage 10…33 VDC (in SIO mode)
• Switching output switchable between PNP/NPN
• Analog output switchable between 4…20 mA/0…10 V
• Automatic current/voltage detection
• IO-Link
• M30 cylindrical design
• stainless steel
