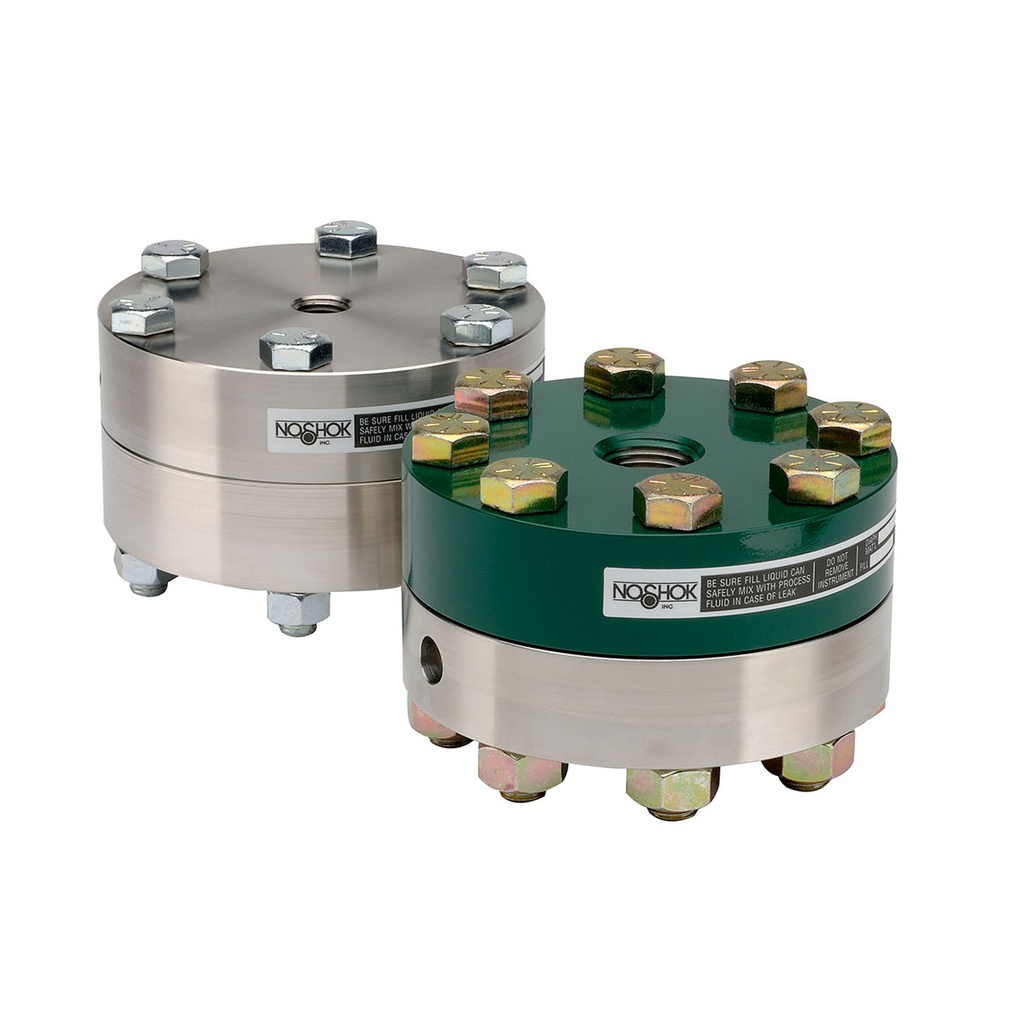

Type 10 Bolted Diaphragm Seal, Standard Pressure, 1/2" NPT Instrument Conn, 316 Stainless Steel, 316 Stainless Steel Diaphragm, NBR O-Ring, 1/2" NPT Process Conn, 316 Stainless Steel, 1/8" NPT Flushing Conn
Manufacturer: Noshok Inc
Mfg Product Code: 10-04S-S-B-04S-1F
Weight: 0.01 lb(s)
On Hand: 0
- Designed to isolate the pressure measuring instrument from high temperatures, or corrosive or viscous process media
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Utilizes a replaceable diaphragm clamped between the flanged metal housings with an o-ring seal to create a leak-free union
- Process connection sizes from 1/4" NPT through 1-1/2" NPT
WARNING: This product can expose you to chemicals including Chromium (VI) and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Type 10 Bolted Diaphragm Seal, Standard Pressure, 1/2" NPT Instrument Conn, 316 Stainless Steel, 316 Stainless Steel Diaphragm, NBR O-Ring, 1/2" NPT Process Conn, 316 Stainless Steel, 1/8" NPT Flushing Conn
Valve: Diaphragm Material:316 SS
Process Connection Type:NPT
Instrument Connection Size:1/2"
Instrument Connection Type:NPT
Process Connection Size:1/2"
O-Ring:NBR
Upper Housing Material:316 SS
Lower Housing Material:316 SS
Flushing Connection Size:1/8"
Flushing Connection Type:NPT
Specifications
| Valve Features | |
|---|---|
| Valve: Diaphragm Material | 316 SS |
| Uncategorized | |
|---|---|
| Process Connection Type | NPT |
| Instrument Connection Size | 1/2" |
| Instrument Connection Type | NPT |
| Process Connection Size | 1/2" |
| O-Ring | NBR |
| Upper Housing Material | 316 SS |
| Lower Housing Material | 316 SS |
| Flushing Connection Size | 1/8" |
| Flushing Connection Type | NPT |
