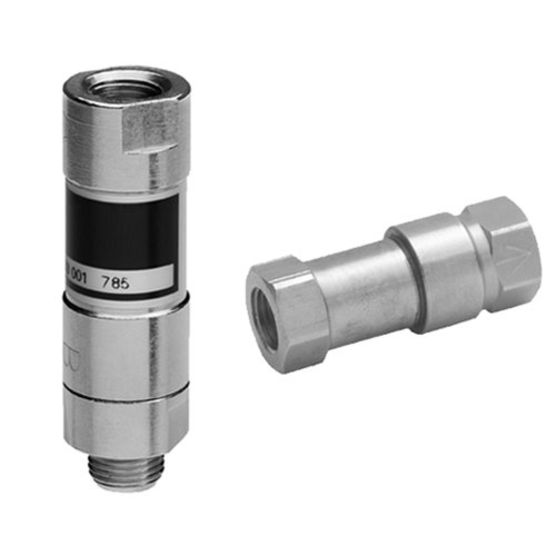

AVENTICS NR01 Series Shut-Off Valve, G 1/8 Internal Thread to G 1/8 External Thread, Brass, FKM Seal

Manufacturer: Asco LP

Mfg Product Code: 0821003004

Weight: 0.05 lb(s)

Shut-Off Valve, G 1/8 Internal Thread to G 1/8 External Thread, Brass, FKM Seal

AVENTICS Series NR01, Thanks to an array of connection options, the NR non-return valves can be screwed in separately and are also suitable for direct installation in piping.

Features

• Compressed air connection 1: G 1/8
• Compressed air connection type 1: Internal thread
• Mounting: thread-in
• Compressed air connection type 2: External thread
• Type: Poppet valve
• Compressed air connection 2: G 1/8
• Nominal flow Qn 1 to 2: 920 l/min
• Working pressure min.: 0.2 bar
• Working pressure max: 10 bar
• Min. ambient temperature: 0 °C
• Max. ambient temperature: 150 °C
• Min. medium temperature: 0 °C
• Max. medium temperature: 150 °C
• Medium: Compressed air
• Weight: 0.02 kg
• Housing material: Brass
• Seal material: Fluorocaoutchouc:
