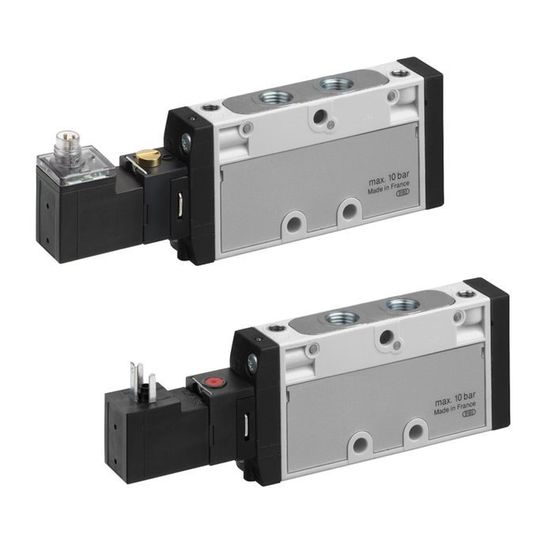

AVENTICS TC08 Series 5/2 Directional Valve, G 1/8 Plate/Pipe, ISO 15217 Plug, Man. Override w/Detent

Manufacturer: Asco LP

Mfg Product Code: 0820060771

Weight: 2.0 lb(s)

5/2 Dir Valve, G 1/8 Plate/Pipe, ISO 15217 Plug

The AVENTICS Series TC08/TC15 includes a wide range of spool valves with housings made of high-performance polymers with robust and flexible metal inserts. It is designed for flow rate performances from 800 to 1500 l/min. These directional valves are easy to assemble, making them ideal for applications requiring the highest efficiency in limited spaces.

Features

• Activation: Electrically
• Nominal flow Qn: 800 l/min
• Switching principle: 5/2
• Compressed air connection output: G 1/8
• Working pressure min.: -0.9 bar
• Working pressure max: 10 bar
• DC operating voltage: 24 V
• Voltage tolerance DC: -10% / +10%
• Manual override: with detent
• Electrical connection type: Plug
• Electrical connection size: ISO 15217, form C
• Actuating control: Double Solenoid
• Sealing principle: Soft Seal
• Pilot: External
• Pilot valve width: 15 mm
• Valve type: Spool valve, positive overlapping
• Connection type: Plate connection, Pipe connection
• Blocking principle: Plate principle
• Can be assembled into blocks: Can be assembled into blocks
• Control pressure min.: 2 bar
• Control pressure max.: 10 bar
• Min. ambient temperature: -10 °C
• Max. ambient temperature: 50 °C
• Min. medium temperature: -10 °C
• Max. medium temperature: 50 °C:
