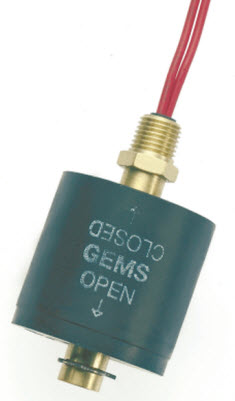

LS-1900 Level Switch, Buna Float, Brass Stem, Normally Open (Reversible), 1/4" NPT Male Thread

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 01901

Weight: 0.31 lb(s)

LS-1900 Series Single-Point Level Switch are intermediate in size, are suitable for high viscosity liquids and provide excellent stability for general use in oils and water. With large float displacement, the LS-1900 Series switch withstands rough service.

Sku: 01901

Model: LS-1900

Sensor Type: Float Type

Primary Material Of Construction: Alloy

Wetted Materials: Brass, Buna N, 316 Stainless Steel, Hysol

Stem Material: Brass

Float Material: Buna N

Float Diameter: 1 7/8"

Actuation Level: 1 3/16"

Min. Liquid SG: 0.55

Maximum Pressure: 150 psi

Minimum Temperature: -40°F

Maximum Temperature: 230°F

Mounting Size: 1/4" NPT Male

Mounting Style: Vertical

Electrical Termination: 25" Long, 18 AWG, Polymeric Leads

Switch Type: SPST (20 VA)

Switch Operation: Normally Open: (Reversible)

Input: N/A

Output: N/A

Approvals: UL Recognized, CSA Listed, CE,: ROHS
