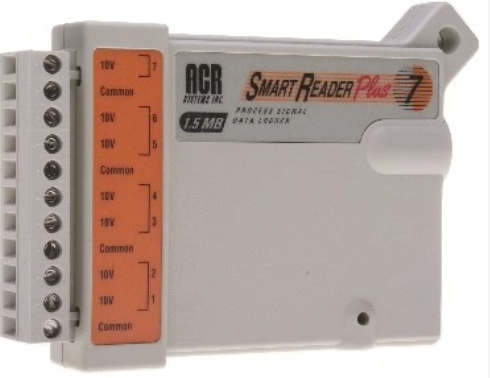

ACR SmartReader Plus 7, 7-Channel Process Signal Data Logger, 128KB Memory
Manufacturer: ACR Systems Inc
Mfg Product Code: 01-0126
Weight: 0.5 lb(s)
On Hand: 0
Eight channel, 12 bit, 32 KB data logger (One ambient temperature and seven external 0-25 mA DC channels).
The SmartReader Plus 7 data logger is a versatile data logger for easy recording of common process signal variables.
Key Features
- Equipped with an internal ambient temperature channel.
- 7 external channels
- 7 transducers or sensors
- Network up to 10 SRP data loggers with SRP7
- Easy calibration to NIST standards
- Compatibility with the Trend Reader® Software
| Accuracy | +/- 0.5% of full scale |
| Input Impedance | greater than 1 M ohm (200 mV channels) greater than 1 M ohm (0 to 2.5 V channels) greater than 1 M ohm (0 to 5.0 V channels) greater than 1 M ohm (0 to 10.0 V channels) 20 ohm (0 to 25 mA channels) |
| Input Ranges - Other Models | 0 to 2.5 volts DC (all external channels) 0 to 5 volts DC (all external channels) 0 to 10 volts DC (all external channels) 0 to 25mA DC (all external channels) |
| Input Ranges - Standard Model | 0 to 2.5 volts DC (1 channel) 0 to 5.0 volts DC (2 channels) 0 to 10.0 volts DC (1 channel) 0 to 200 millivolts DC (1 channel) 0 to 25 milliamps DC (2 channels) |
| Overload Protection | Voltage channels: +/- 40 volts (reverse-polarity protected) Current channels: +/- 70 mA (reverse-polarity protected) |
| Transducer Restrictions | It is recommended to use a single power supply or loop isolators to avoid ground loops |
| Warranty | 3 – years |
